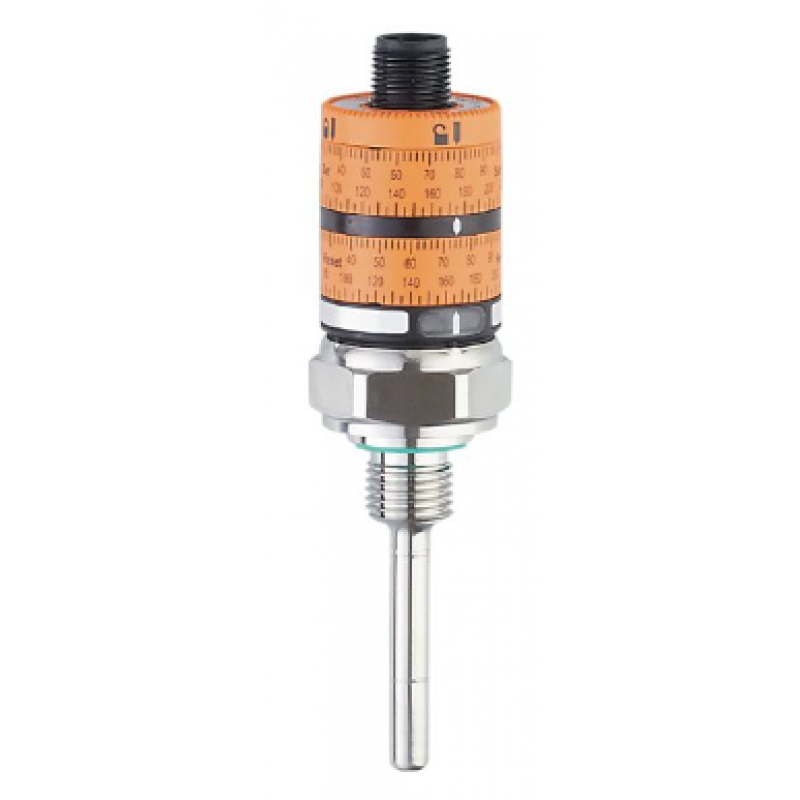

Product Characteristics
Total number of inputs and outputs
Number of digital outputs: 2
Measuring range
-20.... .140 °C
-4.... .284 °F
System connections
Threaded connection G 1/4
Panel mounting length EL [mm]
50
Applications
Special properties
Gold-plated contacts
Measuring element
1 x Pt 1000; (according to DIN EN 60751, class A)
Mediums
Liquid and gaseous media
Temperature [°C]
-40.... .145
Compressive strength [bar]
400
Electrical data
Operating voltage [V]
9.6.... .32 DC; (according to cULus - Class 2)
Current loss [mA]
< 30
Protection class
III
Inverted phase protection
yes
Power-on delay time [s]
0.5
Total inputs/outputs
Total number of inputs and outputs
Number of digital outputs: 2
Outputs
Number of outputs
2
Output signals
Switching signals
Electrical design
PNP
Number of digital outputs
2
Output function
NC+NO
Switching output DC voltage drop maximum value [V]
2
Continuous current load of switching output DC [mA]
500
Short circuit protection
Yes
Short-circuit protection type
Pulse
Overload protection
Yes
Measuring/setting range
Measuring range
-20.... .140 °C
-4.... .284 °F
Switching point, SP
-16.... .140 °C
3.... .284 °F
Recovery point, rP
-20.... .136 °C
-4.... .277 °F
Accuracy / Deviation
Temperature rate of change /10 K [K]
0.1 **)
Repeatability [K]
± 0,1
Adjustment accuracy [K]
± 3
Response time
Response time T05 / T09 [s]
1 / 3; (according to DIN EN 60751)
Software / Programming
Switch point adjustment
Swivel ring
Operating conditions
Ambient temperature [°C]
-40.... .80
Note ambient temperature
At medium temperature: < 80 °C
-40.... .50 °C
At medium temperature: < 145 °C
Storage temperature [°C]
-40.... .100 °C
Enclosure protection class
IP 67
Approvals/Tests
EMC Electromagnetic Compatibility
DIN EN 61000-4-2 ESD
4 kV CD / 8 kV AD
EN 61000-4-3 HF electromagnetic field radiation
10 V/m
DIN EN 61000-4-4 Burst
2 kV
EN 61000-4-6 Conducted immunity for RF field induction
10 V
Shock resistance
DIN IEC 68-2-27
50 g (11 ms)
Vibration
DIN EN 60068-2-6
20 g (10.... .2000 Hz)
MTTF [years]
643.1
UL certification
UL certification number
K018
Mechanical Technical Data
Weight [g]
104.5
Material
Stainless steel (1.4404 / 316L); PC; PBT; FKM
Material (liquid-containing parts)
Stainless steel (1.4404 / 316L); FKM
Tightening torque [Nm]
35
System connection
Threaded connection G 1/4
Probe diameter [mm]
6
Panel mounting length EL [mm]
50
Display/operating elements
Displays
Operation
LED, green
Switching status
LED, yellow
Comments
Note
**) In case of a deviation from the reference conditions of 25 °C
Precise values apply to flowing water.
Packaging unit
1 piece
Electrical connection
Connector: 1 x M12; Translator: A; Contacts: gold-plated
