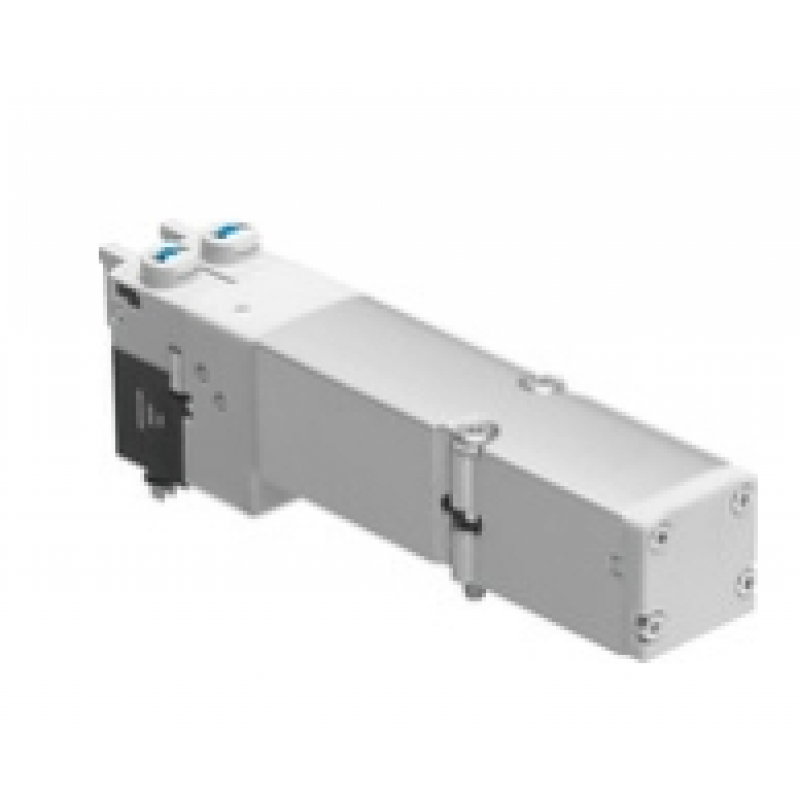

Valve function
Two position five way dual electronic control
Driving method
Electric control
Valve size
20 mm
Standard rated flow (standardized according to DIN 1343)
670 l/min
working voltage
24V DC
working pressure
-0.09 Mpa ... 1 Mpa
working pressure
-0.9 bar ... 10 bar
Structural characteristics
Piston gate valve
authentication
C UL us - Certified (OL)
Protection level
IP65
Complies with IEC 60529 standard
Sealing principle
Soft sealing
Installation location
Optional
Manual control device
Locked
Button type
Leading type
Pilot driven
flow to
reversible
Symbol
00991067
Overlap
Positive overlap
Signal status display
yes
Pilot pressure Mpa
0.3 Mpa ... 0.8 Mpa
Pilot pressure
3 bar ... 8 bar
Suitable for vacuum
yes
Standard nominal flow rate, QS-8
670 l/min
Standard nominal flow rate of QS-10
860 l/min
Open time
9 ms
Reverse switch time
22 ms
Maximum forward test pulse of 0 signal
400 µs
Maximum negative test pulse with signal 1
900 µs
Permissible voltage fluctuations
+/- 25%
Working medium
Compressed air, in accordance with ISO 8573-1:2010 [7:4:4]
Description of Work and Pilot Media
Can work with lubricating medium (must continue to work with lubricating medium thereafter)
Vibration resistance
Transport application testing, severity level 2, in compliance with FN 942017-4 and EN 60068-2-6
Impact resistance
Impact test, severity level 2, in accordance with FN 942017-5 and EN 60068-2-27
Corrosion resistance grade CRC
1- Low corrosion resistance
Paint Wetting Defect Substance (PWIS) Compliance
VDMA24364-B1/B2-L
Storage temperature
-20 °C ... 40 °C
Medium temperature
-5 °C ... 50 °C
Relative air humidity
90% maximum at 40 ° C
ambient temperature
-5 °C ... 50 °C
Maximum tightening torque for valve installation
0.65 Nm
Product weight
100 g
Installation method
With through-hole
Material Description
RoHS compliance
Sealing material
NBR
Shell material
Die cast aluminum
