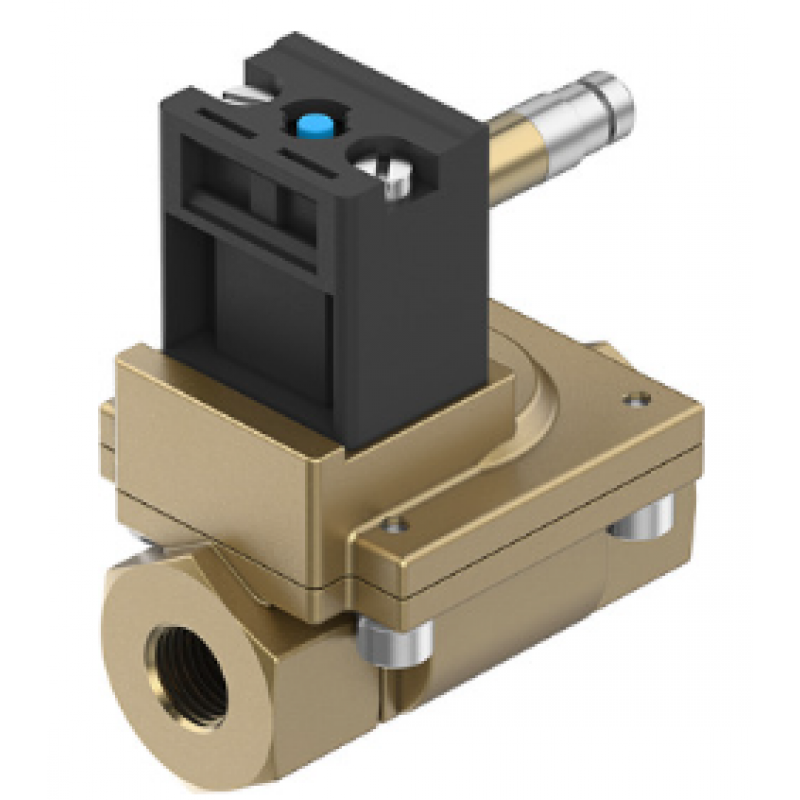

Solenoid valve,MN1H-2-3/4-MS

Solenoid valve,MN1H-2-3/4-MS
Solenoid valve,MN1H-2-3/4-MS
  • MODEL: MN1H-2-3/4-MS
  • LEAD TIME: in stock
$129.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Product data sheet

  • DesignDiaphragm valve
  • Type of actuationElectric
  • Sealing principleSoft
  • Mounting positionoptional
  • Type of mountingIn-line installation
  • Connection Process valveG3/4
  • Electrical connectionType A Plugs To DIN EN 175301-803 Square design
  • Nominal size20 mm
  • Valve function2/2-way, closed, monostable
  • Manual overrideDetenting via accessory Non-detenting
  • Flow directionNon-reversible
  • MediumFiltered compressed air, grade of filtration 200 µm
  • Exhaust-air functionWithout flow control option
  • Characteristic coil data110 V AC: 50 Hz, pick-up power 5.0 VA, holding power 3.7 VA 110 V AC: 60 Hz, pick-up power 5.0 VA, holding power 3.7 VA 230 V AC: 50 Hz, pick-up power 5.0 VA, holding power 3.7 VA 230 V AC: 60 Hz, pick-up power 5.0 VA, holding power 3.7 VA 24 V DC: 2.5 W
  • Type of resetPneumatic spring
  • Type of pilotingPilot actuated
  • Symbol00991399
  • Medium pressure0.5 bar ... 10 bar
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Media temperature-10 °C ... 60 °C
  • Ambient temperature-10 °C ... 60 °C
  • Standard nominal flow rate (standardised to DIN 1343)10000 l/min
  • Switching time on120 ms
  • Switching time off180 ms
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Material housingBrass
  • Material screwsHigh-alloy stainless steel
  • Material number screw1.4301
  • Product weight1100 g
  • Degree of protectionIP65 With plug socket
