Structural characteristics

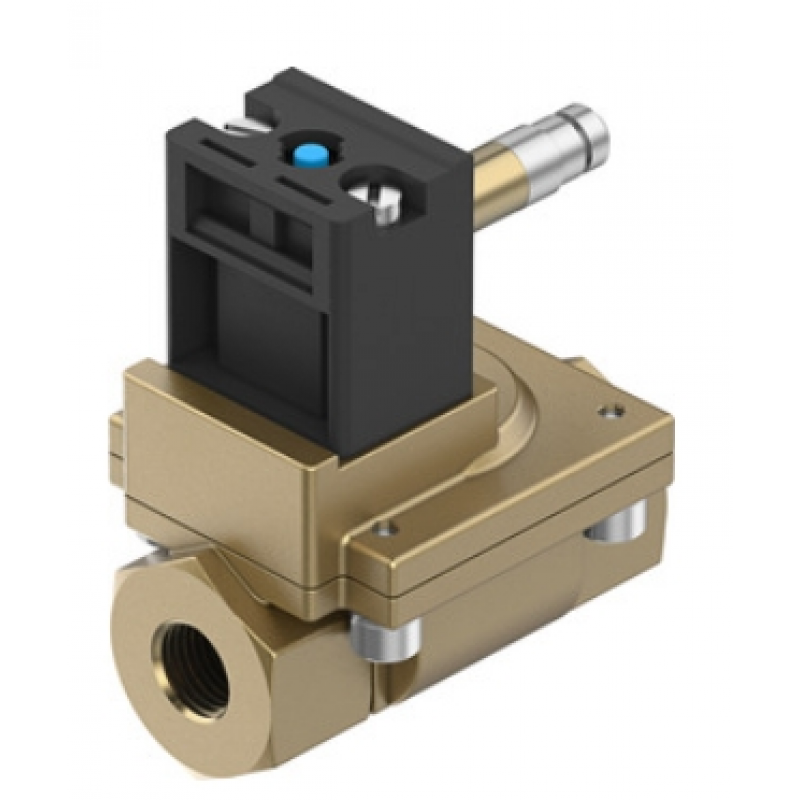

Diaphragm valve
Driving method
Electric control
Sealing principle
Soft sealing
Installation location
Optional
Installation method
Tubular installation
Process valve connection
G1
Electrical interface
Type A
Plug
Complies with DIN EN 175301-803 standard
square
Nominal diameter
25 mm
Valve function
Two position two way, normally closed, monostable
Manual control device
Lock through attachments
Button type
flow to
Irreversibility
secondary
Compressed air filtered, filtration level 200 µ m
Exhaust function
Without throttling option
Characteristic parameters of the coil
110 V AC: 50 Hz, grabbing power 5.0 VA, maintaining power 3.7 VA
110 V AC: 60 Hz, starting power 5.0 VA, maintaining power 3.7 VA
230 V AC: 50 Hz, starting power 5.0 VA, maintaining power 3.7 VA
230 V AC: 60 Hz, starting power 5.0 VA, maintaining power 3.7 VA
24 V DC: 2.5 W
Reset type
Pneumatic spring
Leading type
Pilot driven
Symbol
00991399
Medium pressure
0.5 bar ... 10 bar
Description of Work and Pilot Media
Can work with lubricating medium (must continue to work with lubricating medium thereafter)
Medium temperature
-10 °C ... 60 °C
ambient temperature
-10 °C ... 60 °C
Standard rated flow (standardized according to DIN 1343)
11500 l/min
Open time
120 ms
Closing time
180 ms
Paint Wetting Defect Substance (PWIS) Compliance
VDMA24364-B1/B2-L
Shell material
brass
Screw material
High alloy stainless steel
Material number of screws
one point four three zero one
Product weight
1000 g
Protection level
IP65
With plug-in socket
