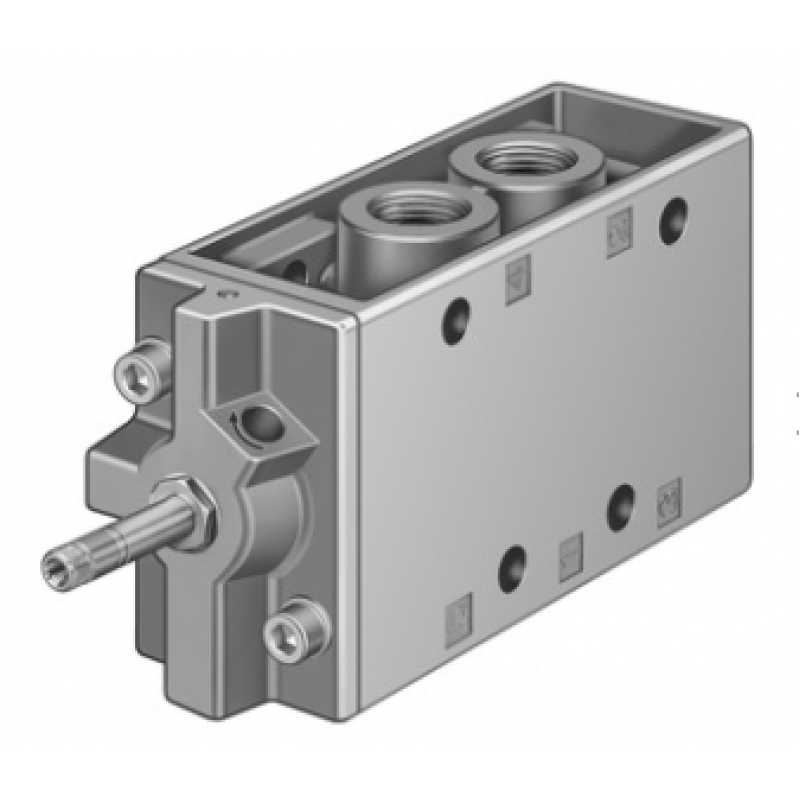

Valve function
Two position five way, monostable state
Driving method
Electric control
width
52 mm
Standard rated flow (standardized according to DIN 1343)
3700 l/min
Working air port
G1/2
working voltage
Through electromagnetic coils, separate orders are required
working pressure
0 Mpa ... 0.8 Mpa
working pressure
0 bar ... 8 bar
Structural characteristics
Lifting seat
Reset type
Spring return
authentication
C UL us - Certified (OL)
Protection level
IP65
Nominal diameter
14 mm
Grid size
69 mm
Exhaust function
With throttling options
Sealing principle
Soft sealing
Installation location
Optional
Manual control device
Locked
Leading type
Pilot driven
Pilot gas source
external
flow to
Irreversibility
Symbol
00991024
Overlap
overlap
Pilot pressure Mpa
0.15 Mpa ... 0.8 Mpa
Pilot pressure
1.5 bar ... 8 bar
B value
zero point three two
Closing time
150 ms
Open time
21 ms
Maximum forward test pulse of 0 signal
2200 µs
Maximum negative test pulse with signal 1
3700 µs
Characteristic parameters of the coil
Please refer to the electromagnetic coil, which needs to be ordered separately
Working medium
Compressed air, in accordance with ISO 8573-1:2010 [7:4:4]
Description of Work and Pilot Media
Can work with lubricating medium (must continue to work with lubricating medium thereafter)
Corrosion resistance grade CRC
1- Low corrosion resistance
Paint Wetting Defect Substance (PWIS) Compliance
VDMA24364-B1/B2-L
Storage temperature
-20 °C ... 60 °C
Medium temperature
-10 °C ... 60 °C
Leading medium
Compressed air, in accordance with ISO 8573-1:2010 [7:4:4]
ambient temperature
-5 °C ... 40 °C
Product weight
1135 g
Electrical interface
Through F-type coils, separate orders are required
Installation method
or
On the pneumatic board
With through-hole
Pilot exhaust port 84
M5
Pilot air port 14
G1/8
Air interface, air port 1
G1/2
Air interface, air port 2
G1/2
Air interface, air port 3
G1/2
Air interface, air port 4
G1/2
Air interface, air port 5
G1/2
Material Description
RoHS compliance
Sealing material
NBR
TPE-U(PU)
Shell material
Die cast aluminum
