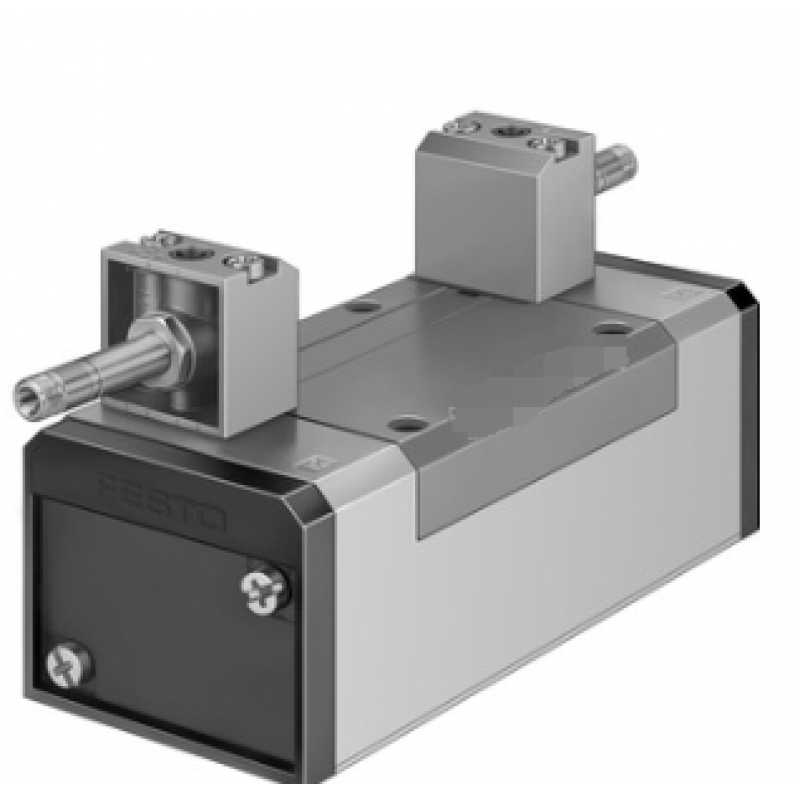

Valve function
Two position five way dual electronic control
Driving method
Electric control
width
65 mm
Standard rated flow (standardized according to DIN 1343)
4500 l/min
Working air port
Base size 3, in accordance with ISO 5599-1 standard
G1/2
working voltage
Through electromagnetic coils, separate orders are required
working pressure
0.2 Mpa ... 1 Mpa
working pressure
2 bar ... 10 bar
Structural characteristics
Piston gate valve
Maritime classification
See certificate
Certificate issuing authority
DNV-TAA000032X
Protection level
IP65
Nominal diameter
14.5 mm
Grid size
71 mm
Exhaust function
With throttling options
Sealing principle
Soft sealing
Installation location
Optional
Compliant with standards
ISO 5599-1
Manual control device
Lock through attachments
Button type
ISO specifications
three hundred and fifty-five
Leading type
Pilot driven
Pilot gas source
Inner leader
flow to
Irreversibility
Symbol
00991005
Overlap
Positive overlap
Reverse switch time
18 ms
Maximum forward test pulse of 0 signal
2200 µs
Maximum negative test pulse with signal 1
3700 µs
Working medium
Compressed air, in accordance with ISO 8573-1:2010 [7:4:4]
Description of Work and Pilot Media
Can work with lubricating medium (must continue to work with lubricating medium thereafter)
Vibration resistance
Transport application testing, severity level 1, in compliance with FN 942017-4 and EN 60068-2-6 standards
Impact resistance
Impact test, severity level 2, in accordance with FN 942017-5 and EN 60068-2-27
Paint Wetting Defect Substance (PWIS) Compliance
VDMA24364-B1/B2-L
Medium temperature
-10 °C ... 60 °C
Sound pressure level
85 dB(A)
ambient temperature
-5 °C ... 40 °C
Product weight
1060 g
Electrical interface
Through F-type coils, separate orders are required
Installation method
On the base
Through through-holes and screws
Pilot exhaust port 82
M5
Pilot exhaust port 84
M5
Air interface, air port 1
Base size 3, in accordance with ISO 5599-1 standard
Air interface, air port 2
Base size 3, in accordance with ISO 5599-1 standard
Air interface, air port 3
Air circuit board specification 3 complies with ISO 5599-1 standard
Air interface, air port 4
Base size 3, in accordance with ISO 5599-1 standard
Air interface, air port 5
Base size 3, in accordance with ISO 5599-1 standard
Material Description
RoHS compliance
Sealing material
HNBR
NBR
Shell material
Die cast aluminum
