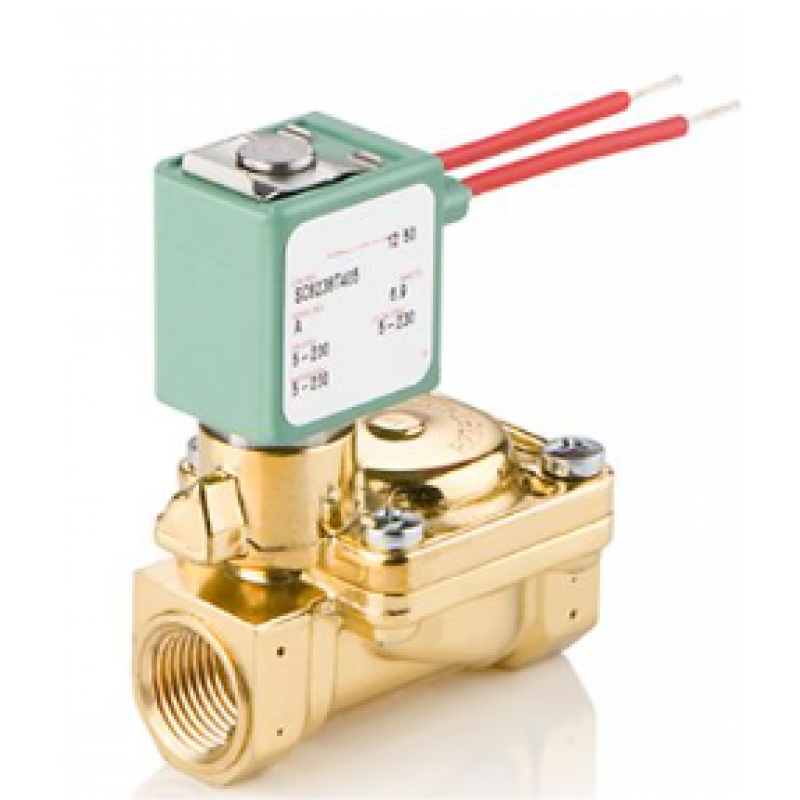

solenoid SCE238D002.24/DC

Body MaterialBrass

Flow (Cv) / Flow (Kv)2.77 / 2.40

Function2/2 Normally Closed

Pipe/Port Type & SizeG 1/2 (ISO 228/1)

Product TypeSolenoid Valve

Valve ActuationSolenoid - Pilot Operated

MediaWater; Air, Inert Gas

Min to Max Operating Pressure (Air)0 - 10 bar

Min to Max Operating Pressure (Water)0 - 10 bar

Product Weight0.40 kg

Coil ClassF

Min to Max Ambient Temperature-10 - 60 °C

Min to Max Fluid Temperature-10 - 85 °C

Orifice Size12 mm

Voltage24 Volts DC

Watt Rating6.9 W

ConnectorIncluded (EN175301-803, industry standard form B)

Voltage Value24/DC

Watt Rating7
