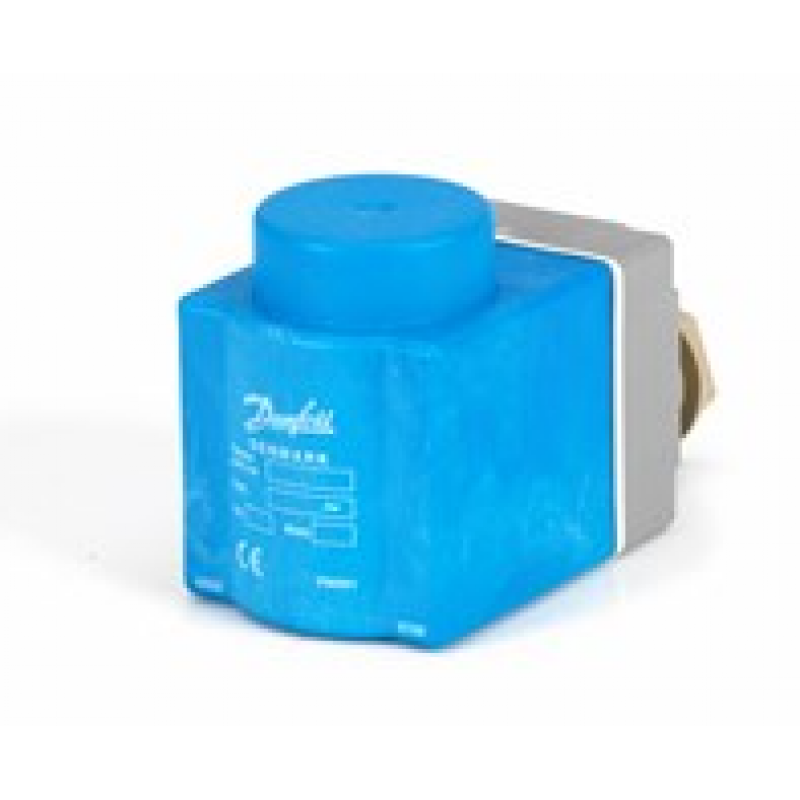

Name: Solenoid coil,018F6730
Price: 77.50 USD
Availability: InStock

Solenoid coil,018F6730

$77.50

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Gross weight	0.334 Kilogram
Net weight	0.305 Kilogram

Volume	0.319 Liter
EAN	5702428023139

Actuator size	13.5 mm
Ambient temperature range [°C] [max]	50 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [Max]	120 °F
Ambient temperature range [°F] [Min]	-40 °F
Approval	LLC CDC TYSK CE EAC UKCA
Cable diameter [mm] [Max]	11 mm
Cable diameter [mm] [Min]	6 mm
China RoHS compliance	Out of scope
Coil connection	Connection box
Coil design standard	VDE 0580
Coil fastening	Clip-on
Coil winding insulation class	Class H to IEC 85
Colour	Blue
Compliance	EN 60730-1
Conductor area [mm2]	0.75 - 1.5 mm2
Duty rating	Continuous
EEE category	5 small equipment (any external dimension 50 cm)
Electrical connection	Terminal box
Electrical connection size	Pg 13.5
Enclosure rating IP	IP67
EU RoHS compliance	Out of scope
Frequency [Hz]	50/60 Hz
Identical product	018F8730
In scope of WEEE	Yes

In scope of WEEE and contain batteries	No
Packing format	Multi pack
Parts Program name	EV210B EV212B EV220B 15 - 50 EV220B 6 - 22 EV220B 65 - 100 EV222B EV224B EV227B EV250B EV251B
Power consumption 50Hz [VA]	28 VA
Power consumption 60Hz [VA]	22 VA
Power consumption [W] 50Hz	15 W
Power consumption [W] 60Hz	13 W
Product accessories	Solenoid coil accessories
Product group	Solenoid valves
Product Name Description	Solenoid coil
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Rel. Humidity [% RH] [Max]	100 %
Rel. Humidity [% RH] [min]	0 %
SCIP dossier no.	23785618-b379-4da7-a913-ecd40c8fae6d
SCIP dossier product name	Solenoid coils
Serviceable	No
Spare part number	018F6192
Supply voltage 50Hz Max [V]	110 V
Supply voltage 60Hz Max [V]	110 V
Supply voltage [V] AC	110 V
Type	BE110CS
Type designation	BE110CS
UK RoHS compliance	Out of scope
