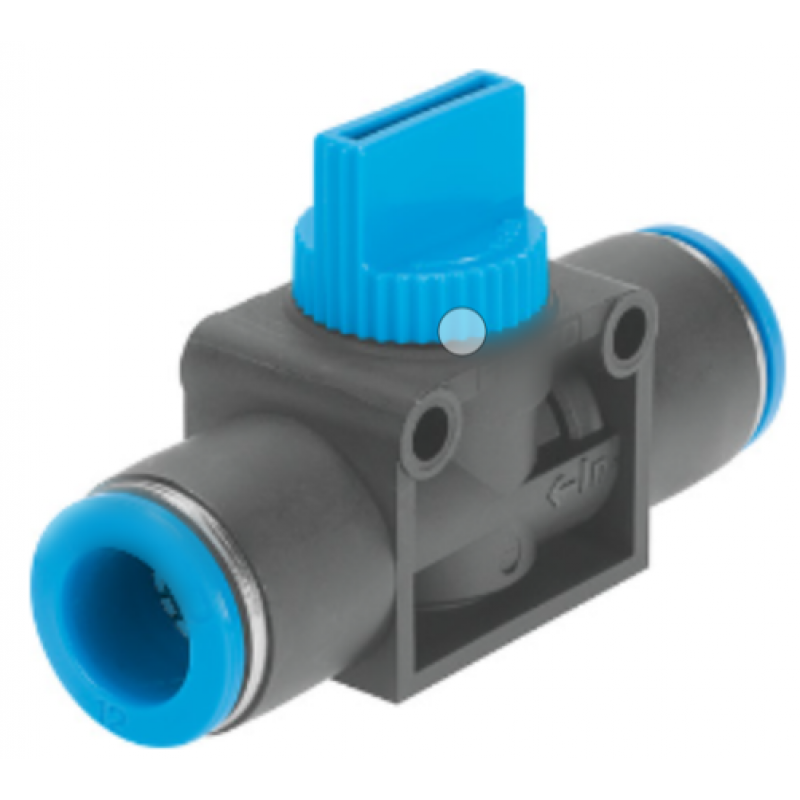

Shut-off valve,HE-2-QS-8

Shut-off valve,HE-2-QS-8
Shut-off valve,HE-2-QS-8
  • MODEL: HE-2-QS-8
  • LEAD TIME: 3-4 WEEKS
$9.50
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Product data sheet

  • Valve function2/2 double solenoid
  • Pneumatic connection, port 1QS-8
  • Pneumatic connection, port 2QS-8
  • Type of actuationManual
  • Type of mountingEither: Direct mounting via through-hole In-line installation
  • Standard nominal flow rate (standardised to DIN 1343)415.8 l/min
  • Nominal size3.5 mm
  • Operating pressure-0.095 MPa ... 1 MPa
  • Operating pressure-0.95 bar ... 10 bar
  • Ambient temperature0 °C ... 60 °C
  • Material housingPBT-reinforced
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Sealing principleSoft
  • Mounting positionoptional
  • DesignPiston gate valve
  • Type of pilotingDirect
  • Flow directionReversible
  • Symbol00997328
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Cleanroom classClass 4 according to ISO 14644-1
  • Media temperature0 °C ... 60 °C
  • Product weight26 g
  • Note on materialsRoHS-compliant
  • Material sealsNBR
