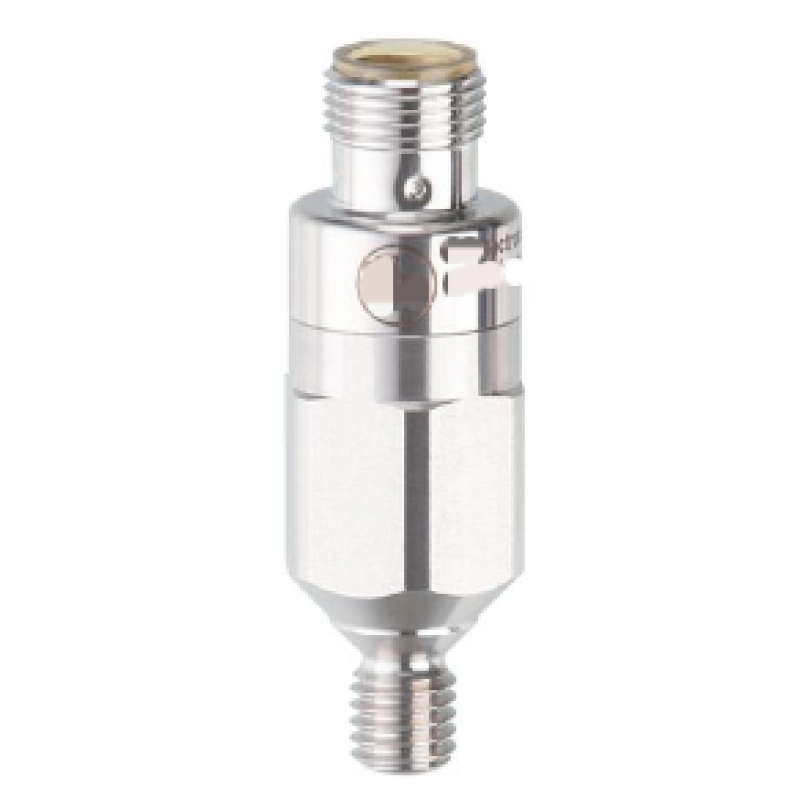

Vibration sensor VSA001

Vibration sensor VSA001
Vibration sensor VSA001
  • MODEL: Vibration sensor VSA001
  • LEAD TIME: 1week
$198.58
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Product data sheet

Product characteristics
Measuring range of vibration [g]-25...25
Frequency range [Hz]1...6000
Measuring principlecapacitive
Application
Designfor connection to external diagnostic electronics VSE
Applicationvibration detection
Electrical data
Operating voltage [V]7.2...10.8 DC
Current consumption [mA]< 15
Min. insulation resistance [MΩ]100; (500 V DC)
Protection classIII
Reverse polarity protectionyes
Type of sensorMicroelectromechanical system (MEMS)
Outputs
Analog current output [mA]0...10
Max. load [Ω]300
Measuring/setting range
Measuring range of vibration [g]-25...25
Frequency range [Hz]1...6000
Measuring principlecapacitive
Sensitivity [µA/g]142
Number of measurement axes1
Accuracy / deviations
Linearity deviation0,2 %
Operating conditions
Ambient temperature [°C]-30...125
Note on ambient temperature
cULus: < 85 °C
Storage temperature [°C]-30...125
ProtectionIP 67; IP 68; IP 69K
Tests / approvals
EMC
EN 61000-6-2
EN 61000-6-3
Shock resistance
DIN EN 60068-2-2750 g 11 ms
500 g 1 ms
Vibration resistance
DIN EN 60068-2-620 g / 10 ... 2000 Hz
MTTF [years]1701
Mechanical data
Weight [g]50
Type of mountingM8 x 1,25
Materialhousing: stainless steel (1.4404 / 316L)
Tightening torque [Nm]8
Mechanische Überlastfestigkeit [g]500
Accessories
Items supplied
washer, conical
Remarks
Pack quantity1 pcs.
Electrical connection
Connector: 1 x M12; coding: A; Maximum cable length: 250 m
