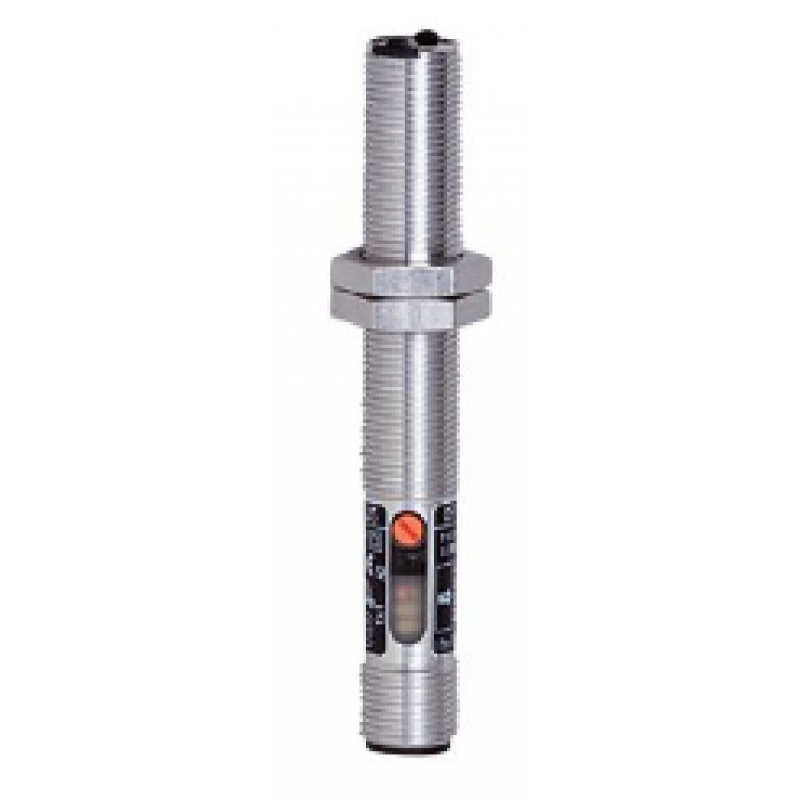

Product Characteristics
Light Type
Infrared
Housing
Threaded construction
APPLICATIONS
Special Performance
Function Monitoring Output
Function principle
Counterpoise photoelectric switches
Electrical data
Operating voltage [V]
10.... .36 DC
Current loss [mA]
< 30
Protection class
II
Inverted phase protection
yes
Type of light
Infrared
Wavelength [nm]
880
Output
Electrical Design
PNP
Output Function
Bright pass and dark pass modes; (selectable)
Switching output DC voltage drop max.
2.5
Function monitoring output
Yes
Function check output voltage drop maximum value [V]
3.5
Max. current load for function monitoring output [mA]
10
Continuous current load for switching output DC [mA]
200
Switching frequency DC [Hz]
320
Short circuit protection
Yes
Short-circuit protection type
Pulse
Overload protection
Yes
Monitoring Range
Transmitter/Receiver
Receiver
Detection distance [m]
< 4
Detection distance can be set
Yes
Operating conditions
Ambient temperature [°C]
-25.... ...60
Enclosure protection class
IP 65
Certificates/Tests
EMC Electromagnetic Compatibility
EN 60947-5-2
MTTF [years]
652
Mechanical Technical Data
Weight [g]
40.7
Housing
Threaded construction
Dimensions [mm]
M12 x 1 / L = 74
Thread designation
M12 x 1
Material
Housing: Brass White bronze - plated
Lens material
PMMA
Display/operating elements
Display
Switching status
1 x LED, yellow
Operation
1 x LED, green
Function
1 x LED, red
Accessory
Scope of supply
Fixing nuts: 2
screwdriver
Note
Packing unit
1 piece
Electrical connection
Connector: 1 x M12; Translator: A
