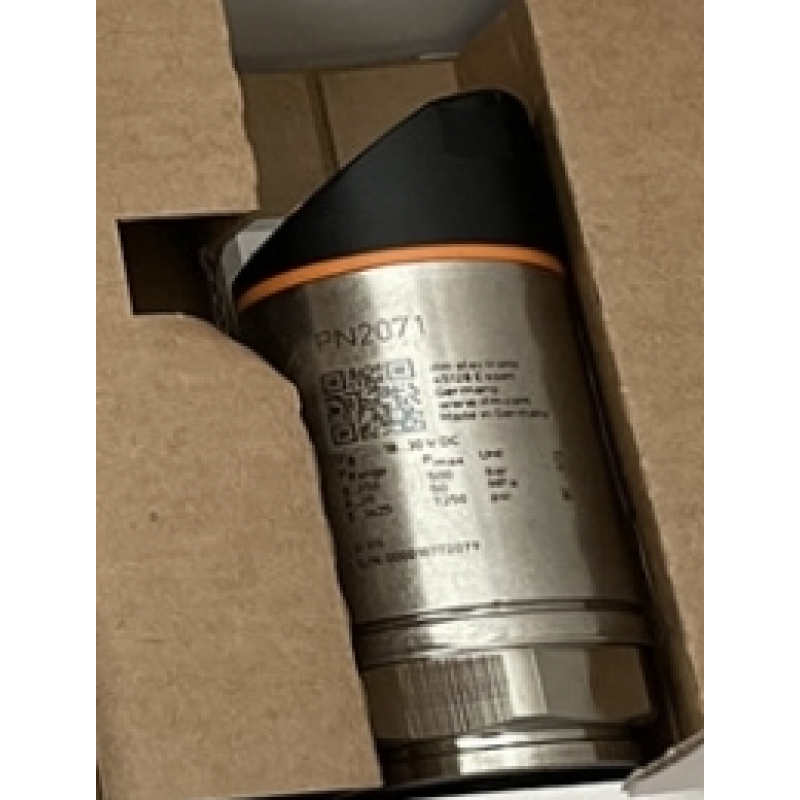

Product characteristics
| Number of inputs and outputs | Number of digital outputs: 2; Number of analog outputs: 1 |
|---|
| Measuring range | | 0...250 bar | 0...3625 psi | 0...25 MPa |
|
|---|
| Process connection | threaded connection G 1/4 Internal thread (DIN EN ISO 1179-2) |
|---|
Application
| System | gold-plated contacts |
|---|
| Measuring element | metallic thin film cell |
|---|
| Application | for industrial applications |
|---|
| Media | liquids and gases |
|---|
| Medium temperature [°C] | -25...80 |
|---|
| Min. bursting pressure | |
|---|
| Pressure rating | |
|---|
| Vacuum resistance [mbar] | -1000 |
|---|
| Type of pressure | relative pressure |
|---|
Electrical data
| Operating voltage [V] | 18...30 DC; (to SELV/PELV) |
|---|
| Current consumption [mA] | < 35 |
|---|
| Min. insulation resistance [MΩ] | 100; (500 V DC) |
|---|
| Protection class | III |
|---|
| Reverse polarity protection | yes |
|---|
| Power-on delay time [s] | 0.3 |
|---|
| Integrated watchdog | yes |
|---|
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2; Number of analog outputs: 1 |
|---|
Outputs
| Total number of outputs | 2 |
|---|
| Output signal | switching signal; analog signal; IO-Link; (configurable) |
|---|
| Electrical design | PNP/NPN |
|---|
| Number of digital outputs | 2 |
|---|
| Output function | normally open / closed; (configurable) |
|---|
| Max. voltage drop switching output DC [V] | 2 |
|---|
| Permanent current rating of switching output DC [mA] | 250 |
|---|
| Switching frequency DC [Hz] | < 500 |
|---|
| Number of analog outputs | 1 |
|---|
| Analog current output [mA] | 4...20; (scalable 1:5) |
|---|
| Max. load [Ω] | 500 |
|---|
| Analog voltage output [V] | 0...10; (scalable 1:5) |
|---|
| Min. load resistance [Ω] | 2000 |
|---|
| Short-circuit protection | yes |
|---|
| Type of short-circuit protection | yes (non-latching) |
|---|
| Overload protection | yes |
|---|
Measuring/setting range
| Measuring range | | 0...250 bar | 0...3625 psi | 0...25 MPa |
|
|---|
| Analog start point | | 0...200 bar | 0...2900 psi | 0...20 MPa |
|
|---|
| Analog end point | | 50...250 bar | 725...3625 psi | 5...25 MPa |
|
|---|
Factory setting / CMPT = 2
| Set point SP | | 1.5...250 bar | 25...3625 psi | 0.15...25 MPa |
|
|---|
| Reset point rP | | 0.5...249 bar | 10...3610 psi | 0.05...24.9 MPa |
|
|---|
| Min. difference between SP and rP | |
|---|
| In steps of | |
|---|
Status_B High Resolution / CMPT = 3
| Set point SP | | 1.6...250 bar | 23...3626 psi | 0.16...25 MPa |
|
|---|
| Reset point rP | | 0.5...249 bar | 8...3611 psi | 0.05...24.9 MPa |
|
|---|
| Min. difference between SP and rP | |
|---|
| In steps of | |
|---|
Accuracy / deviations
| Switch point accuracy [% of the span] | < ± 0,4; (Turn down 1:1) |
|---|
| Repeatability [% of the span] | < ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1) |
|---|
| Characteristics deviation [% of the span] | < ± 0,25 (BFSL) / < ± 0,5 (LS); (Turn down 1:1; BFSL = Best Fit Straight Line; LS = limit value setting) |
|---|
| Hysteresis deviation [% of the span] | < ± 0,1; (Turn down 1:1) |
|---|
| Long-term stability [% of the span] | < ± 0,05; (Turn down 1:1; per 6 months) |
|---|
| Temperature coefficient zero point [% of the span / 10 K] | 0,2; (-25...80 °C) |
|---|
| Temperature coefficient span [% of the span / 10 K] | 0,2; (-25...80 °C) |
|---|
| Notes on the accuracy / deviation | switch point accuracy, linearity error under DNV GL: < ± 1%: < ± 1% |
|---|
Reaction times
| Response time [ms] | < 1.5 |
|---|
| Delay time programmable dS, dr [s] | 0...50 |
|---|
| Damping process value dAP [s] | 0...4 |
|---|
| Damping for the analog output dAA [s] | 0...4 |
|---|
| Max. response time analog output [ms] | 3 |
|---|
Software / programming
| Parameter setting options | hysteresis / window; normally open / closed; switch-on/switch-off delay; Damping; Display unit; current/voltage output |
|---|
Interfaces
| Communication interface | IO-Link |
|---|
| Transmission type | COM2 (38,4 kBaud) |
|---|
| IO-Link revision | 1.1 |
|---|
| SDCI standard | IEC 61131-9 |
|---|
| SIO mode | yes |
|---|
| Required master port class | A; (when pin 2 not connected: B) |
|---|
| Supported DeviceIDs | | Type of operation | DeviceID |
|---|
| Factory setting / CMPT = 2 | 460 | | Status_B High Resolution / CMPT = 3 | 639 |
|
|---|
| Note |
