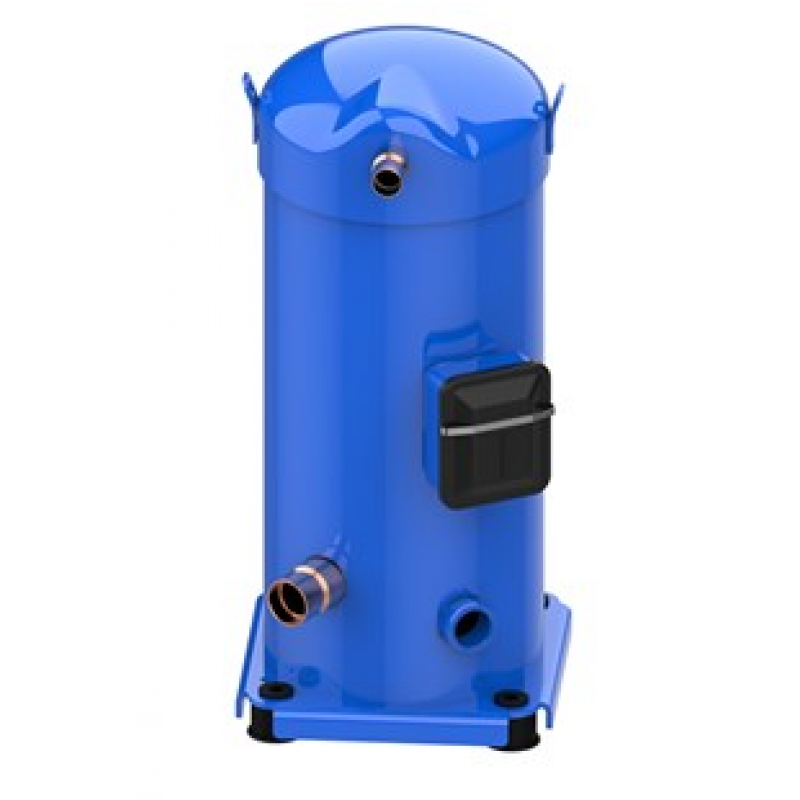

Scroll compressor, CXH140A4BLA

Scroll compressor, CXH140A4BLA
Scroll compressor, CXH140A4BLA
  • MODEL: CXH140A4BLA
  • LEAD TIME: 1 week
$750.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Product data sheet

Brand techniqueScroll compressor
Capacity controlFixed speed
China RoHS complianceOut of scope
ColourBlue
Compressor power supply [V]380-415/3/50 460/3/60
Configuration codeSingle
Connection typeBrazed
DescriptionCXH140-4
Diameter [mm]236 mm
Discharge connection height [mm]519 mm
Discharge connection pipe size [in]7/8 in
Discharge connection size [in]7/8 in
Drawing number8560074a
EconomizerNo
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(a), 6(a)-I, 7(a), 7(c)-I, 8(b), 9(b)
FamilyCXH
Fitting standardODF
Frequency [Hz]50/60
Gauge port HPNone
Gauge port LPSchrader
Glass mountingThreaded
Glass torque [Nm]50 N-m
High Side TS Max150 °C
High Side TS Min-35 °C
High Side Volume1.2 L
High value of nominal voltage at 50Hz [V]400 V
High value of nominal voltage at 60Hz [V]460 V
High value of voltage range at 50Hz [V]440 V
High value of voltage range at 60Hz [V]506 V
In scope of WEEE and contain batteriesNo
IP protection classIP54 (with cable gland)
Low Side TS Max55 °C
Low Side TS Min-35 °C
Low Side Volume10 L
Low value of nominal voltage at 50Hz [V]380 V
Low value of nominal voltage at 60Hz [V]460 V
Low value of voltage range at 50Hz [V]340 V
Low value of voltage range at 60Hz [V]414 V
LRA147 A
Max pressure (PS) - high side45.5 bar
Max pressure (PS) - low side33.3 bar
Maximum Operating Current [MOC]27 A
MCC31.5 A
Model numberCXH140A4BLA
Motor protectionInternal overload protector
Mounting torque [Nm]21 N-m
Network power supply [V/Ph/Hz]380-415/3/50 460/3/60
Oil charge [L]2.5 L
Oil drainNone
Oil equalization1-3/4" Rotolock
Oil reference160SZ
Oil typePOE
Packing formatIndustrial pack
Packing quantity8
Phase3
Power connectionsScrew 4.8 mm
Product groupHermetic compressors
Product Name DescriptionScroll compressor CXH
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]7.9 kg
RefrigerantsR410A
RLA22.5 A
Rotational speed at 50Hz [rpm]2900 rpm
Rotational speed at 60Hz [rpm]3500 rpm
SCIP dossier no.3810c14d-553d-4671-a585-931922fe1d04
SCIP dossier product nameCXH140
Segment usageAir conditioning
Shipped instructionsInstallation instructions
Shipped mountingMounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oilInitial oil charge
Suction connection height [mm]136 mm
Suction connection material-
Suction connection pipe size [in]1 3/8 in
Suction connection size [in]1 3/8 in
Swept volume [cm3]132.9 cm³
TechnologyScroll
Test dif [bar] [Max]37 bar
Test HP [bar] [Max]45.5 bar
Test LP [bar] [Max]33.3 bar
Torque earth [Nm]2 N-m
Torque power [Nm]3 N-m
Total height [mm]563 mm
TypeCXH140
UK RoHS complianceOut of scope
Viscosity [cP]32 cP
Winding resistance for three-phase compressors with identical windings [Ohm]0.92 Ohm
