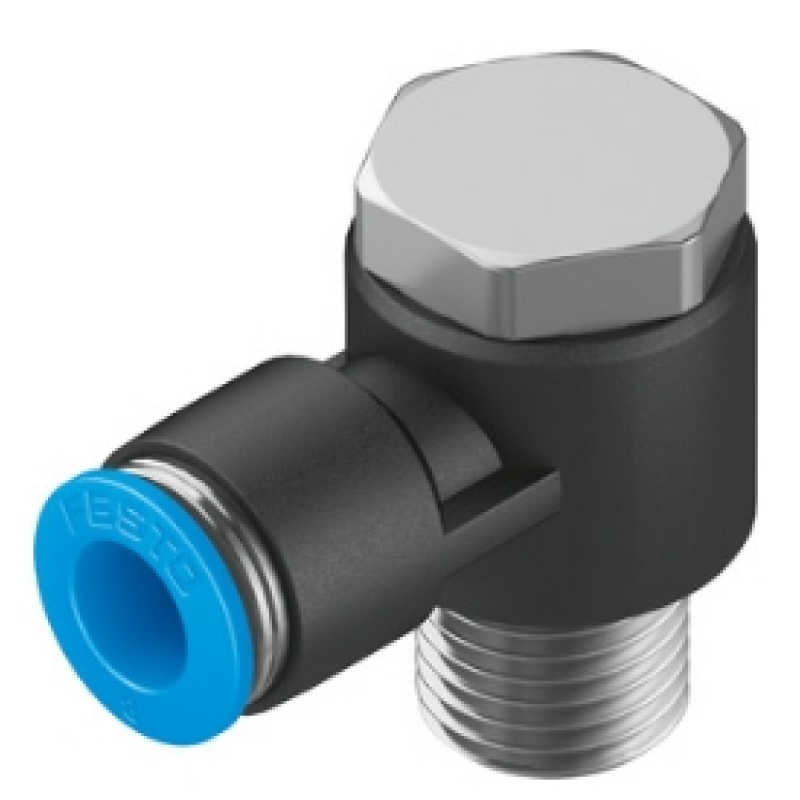

specifications
standard
Nominal diameter
5 mm
The type of seal that is screwed into the screw
coating
Installation location
Optional
design
L-shaped
Package specifications
fifty
Structural characteristics
Push-pull principle
Complete temperature range under working pressure
-0.095 Mpa 0.6 Mpa
Working pressure complete temperature range
-0.95 bar 6 bar
Complete temperature range under working pressure
-13.775 psi 87 psi
Working pressure dependent on temperature
-0.095 Mpa 1.4 Mpa
Working pressure dependent on temperature
-0.95 bar 14 bar
Working pressure dependent on temperature
-13.775 psi 203 psi
Working medium
Compressed air, in accordance with ISO 8573-1:2010 [7: -: -]
The moisture content complies with the manufacturer's declaration of conformity on www.festo.com
Description of Work and Pilot Media
Working with lubricating media available
Corrosion resistance grade CRC
1- Low corrosion resistance
Paint Wetting Defect Substance (PWIS) Compliance
VDMA24364-B1/B2-L
Cleanroom level
Level 4, in accordance with ISO 14644-1
ambient temperature
-10 ° C 80 ° C
Nominal torque
9 Nm
Nominal tightening torque tolerance
± 20%
Product weight
38 g
Installation method
Hollow bolt, outer hexagon
Air interface, air port 1
External thread R1/4
Air interface, air port 2
Suitable for tracheal outer diameter of 8 mm
Release Ring Color
blue
Material Description
RoHS compliance
Shell material
PBT
Hollow bolt material
Nickel plated brass
Release ring material
POM
Material of tracheal seal
NBR
Material of tracheal clamping element
High alloy stainless steel
