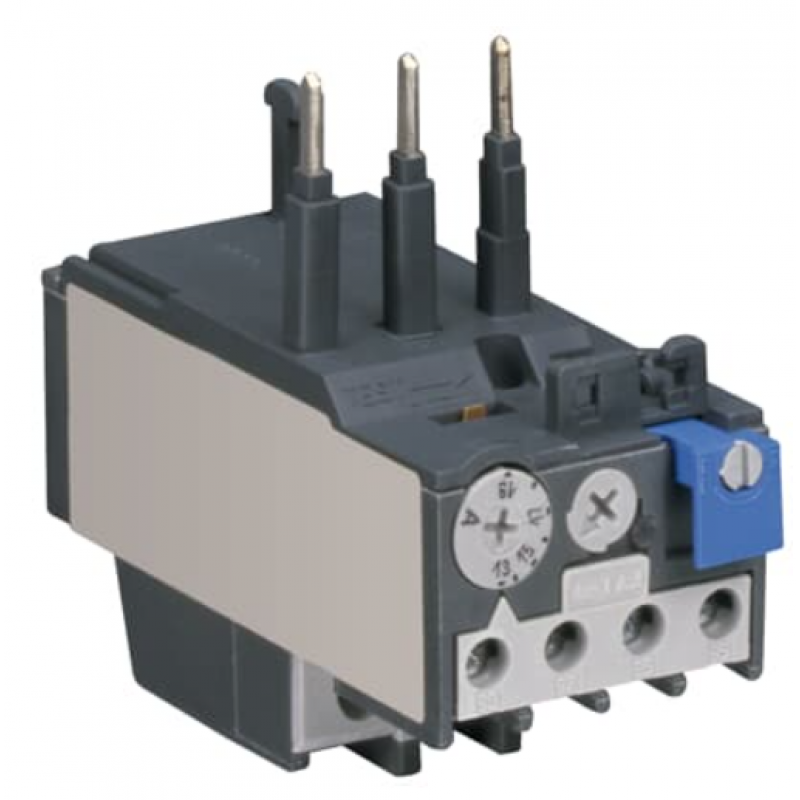

Dimension
Product net width.
44 mm
Net Height: 80 mm
80 mm
Net Depth: 94 mm
94 mm
Net Weight: 0.15 kg
0.15 kg
Technical Parameters
Rated working voltage.
Main Circuit 690 V AC
Main Circuit 440 V DC
Rated operating current (Ie): 1.8 A
1.8 A
Rated frequency (f).
Auxiliary Circuit 50 Hz
Auxiliary Circuit 60 Hz
Auxiliary Circuit DC
Main Circuit 60 Hz
Main Circuit 50 Hz
Main Circuit DC
Number of poles: 3
3
Number of NC auxiliary contacts: 1
1
Number of auxiliary contacts NO: 1
1
Number of protection poles: 3
3
Rated heating current (free air) (Ith).
Auxiliary Circuit NC 5 A
Auxiliary Circuit NO 5 A
Rated operating current AC-15 (Ie).
(120 V) NC 3 A
(120 V) NO 1.5 A
(240 V) NC 3 A
(240 V) NO 1.2 A
(400 V) NC 0.75 A
(400 V) NO 0.37 A
(440 V) NC 0.75 A
(440 V) NO 0.37 A
(500 V) NC 0.3 A
(500 V) NO 0.25 A
Protection class: Housing IP20
Housing IP20
Main Circuit Terminals IP10
Pollution Class.
3
Auxiliary Circuit Connection Capacity
Flexible 1/2x 0.75 ... 2.5 mm²
Rigid 1/2x 0.75 ... 4 mm²
Main circuit connection capacity: Flexible with Ferrule 1x 0.75 ... 4 mm²
Flexible with Ferrule 1x 0.75 ... 4 mm²
Flexible with Ferrule 2x 0.75 ... 4 mm²
Flexible 1x 0.75 ... 4 mm² Flexible 1x 0.75 ...
Flexible 2x 0.75 ... 4 mm² Flexible 2x 0.75 ...
Rigid 1x 0.75 ... 4 mm² Rigid 1x 0.75 ...
Rigid 2x 0.75 ... 4 mm²
Recommended screwdrivers.
Auxiliary Circuit Pozidriv 1
Main Circuit Pozidriv 2
Power loss.
at Rated Operating Conditions per Pole 1.1 ... 2.2 W
Suitable for: AX09
AX09
AX12
AX18
AX25
AX32
AX40
Standard: CSA 22.2 No. 14
CSA 22.2 No. 14
IEC/EN 60947-1
IEC/EN 60947-4-1
IEC/EN 60947-5-1
UL 508
UL/CSA applicable technical parameters
Maximum working voltage UL/CSA.
Main Circuit 600 V AC
Contact class UL/CSA.
(NC:) B600
(NO:) C600
Main Circuit Connection Capacity UL/CSA.
Flexible 1/2x 16-8 AWG
Stranded 1/2x 16-8 AWG
Auxiliary Circuit Connection Capacity UL/CSA: Flexible 1/2x 18-14 AWG
Flexible 1/2x 18-14 AWG
Stranded 1/2x 18-14 AWG
Tightening Torque UL/CSA.
Auxiliary Circuit 12 in-lb
Main Circuit 12 in-lb
