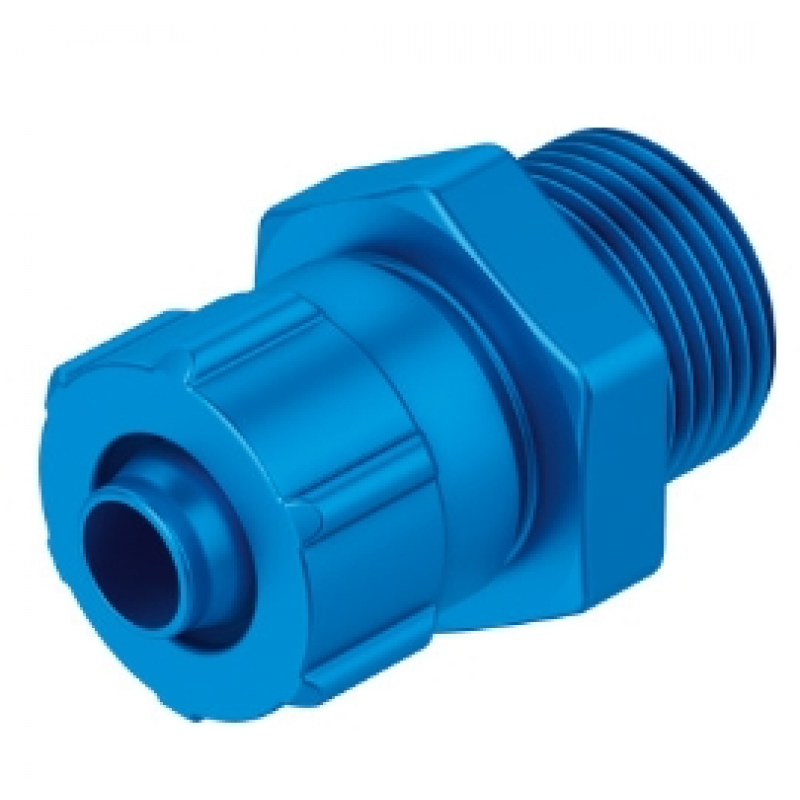

Nominal diameter
4.9 mm
The type of seal that is screwed into the screw
Sealing ring
Installation location
Optional
design
Inline design
Package specifications
ten
Complete temperature range under working pressure
-0.095 Mpa 1 Mpa
Working pressure complete temperature range
-0.95 bar 10 bar
Complete temperature range under working pressure
-13.775 psi 145 psi
Explanation of Work Stress
Water: At a maximum temperature of 50 ° C, the maximum value is 0.6 MPa
Working medium
Compressed air, in accordance with ISO 8573-1:2010 [7: -: -]
Water (liquid, ice free)
Description of Work and Pilot Media
Working with lubricating media available
Water: G-type threads can only use OL type sealing rings as additional attachments
Corrosion resistance grade CRC
2- Moderate corrosion resistance
Paint Wetting Defect Substance (PWIS) Compliance
VDMA24364-B1/B2-L
ambient temperature
-10 ° C 60 ° C
Nominal torque
3.5 Nm
Nominal tightening torque tolerance
± 20%
Air interface, air port 1
External thread G1/8
Air interface, air port 2
Suitable for tracheal outer diameter of 8 mm
Used for hook joints with an inner diameter of 6 mm and nuts
Material of pipe joint nut
Anodized forged aluminum alloy
Material for screwing in screws
Anodized refined aluminum alloy
Material Description
RoHS compliance
Sealing ring material
Reinforced polyamide
TPE-U (PU)
