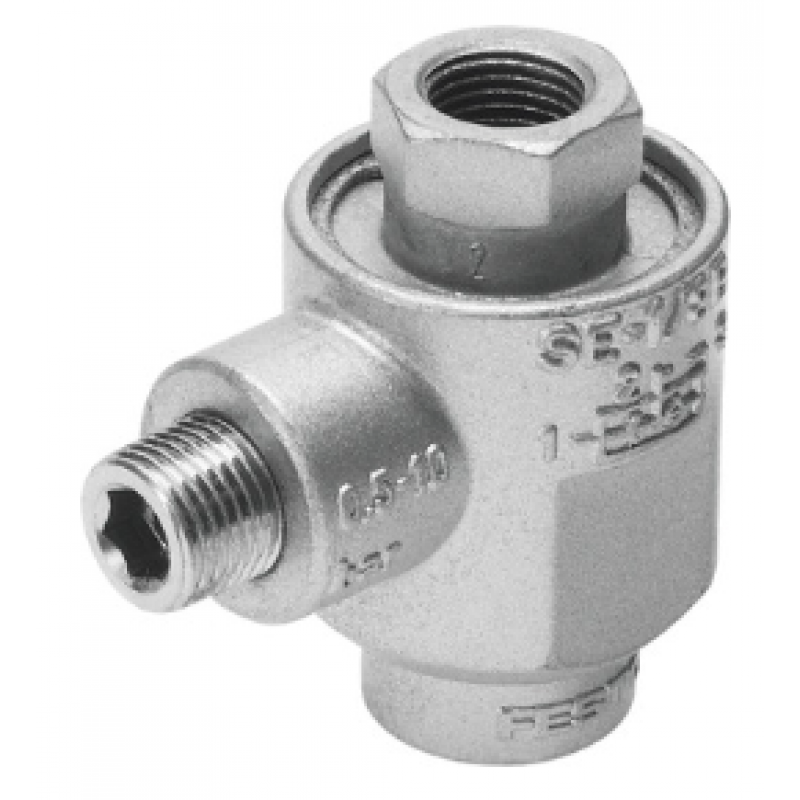

Quick exhaust valve,SE-1/4-B

Quick exhaust valve,SE-1/4-B
Quick exhaust valve,SE-1/4-B
  • MODEL: SE-1/4-B
  • LEAD TIME: in stock
$12.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Product data sheet

  • Valve functionQuick exhaust
  • Pneumatic connection 1G1/4
  • Pneumatic connection 2G¼
  • Type of mountingScrew-in
  • Standard nominal flow rate exhaust air 6->5 bar1200 l/min
  • Standard nominal flow rate pressurization 6->5 bar960 l/min
  • Operating pressure0.5 bar ... 10 bar
  • Ambient temperature-20 °C ... 75 °C
  • Housing materialDie-cast zinc
  • Operating mediumCompressed air as per ISO 8573-1:2010 [7:-:-]
  • Nominal width7 mm
  • Mounting positionAny
  • Symbol00991459
  • Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Temperature of medium-20 °C ... 75 °C
  • Product weight100 g
  • Pneumatic connection 3G1/4
  • Seals materialNBR
