Specifications
standard
Nominal diameter
6.2 mm
Installation location
Optional

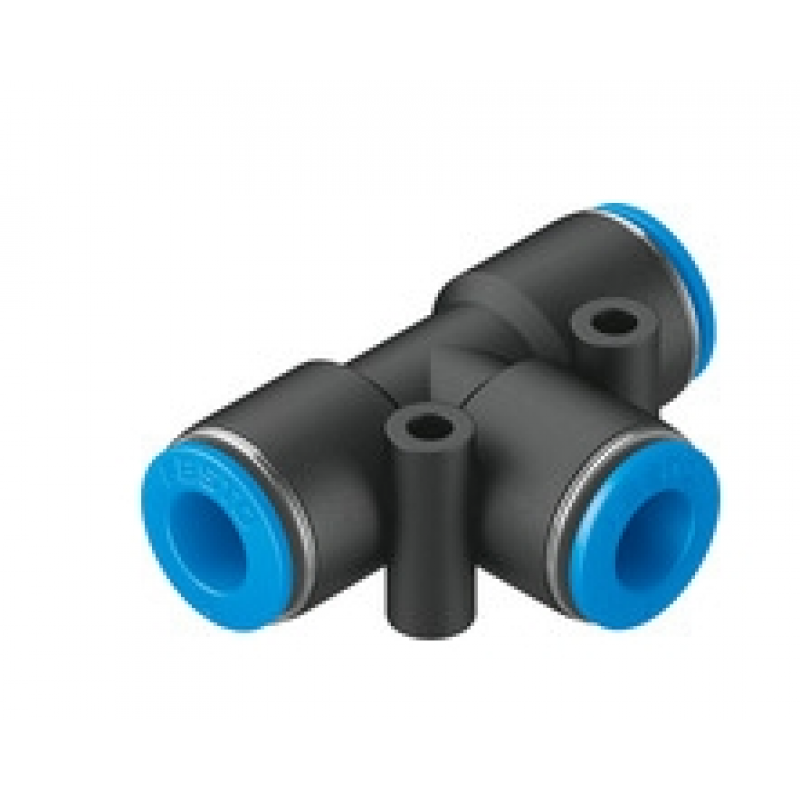

Design
T-shaped
Package specifications
ten
Structural characteristics
Push-pull principle
Complete temperature range under working pressure
-0.095 Mpa ... 0.6 Mpa
Working pressure complete temperature range
-0.95 bar ... 6 bar
Complete temperature range under working pressure
-13.775 psi ... 87 psi
Working pressure dependent on temperature
-0.095 Mpa ... 1.4 Mpa
Working pressure dependent on temperature
-0.95 bar ... 14 bar
Working pressure dependent on temperature
-13.775 psi ... 203 psi
Working medium
Compressed air, in accordance with ISO 8573-1:2010 [7: -: -]
The moisture content complies with the manufacturer's declaration of conformity on www.festo.com
Description of Work and Pilot Media
Working with lubricating media available
Corrosion resistance grade CRC
1- Low corrosion resistance
Paint Wetting Defect Substance (PWIS) Compliance
VDMA24364-B1/B2-L
Cleanroom level
Level 4, in accordance with ISO 14644-1
ambient temperature
-10 °C ... 80 °C
Product weight
16 g
Output quantity
two
Number of supply pipelines
one
Air interface, air port 1
For trachea with an outer diameter of 8 mm
Air interface, air port 2
Suitable for tracheal outer diameter of 8 mm
Release Ring Color
blue
Material Description
RoHS compliance
Shell material
PBT
Release ring material
POM
Material of tracheal seal
NBR
Material of tracheal clamping element
High alloy stainless steel
