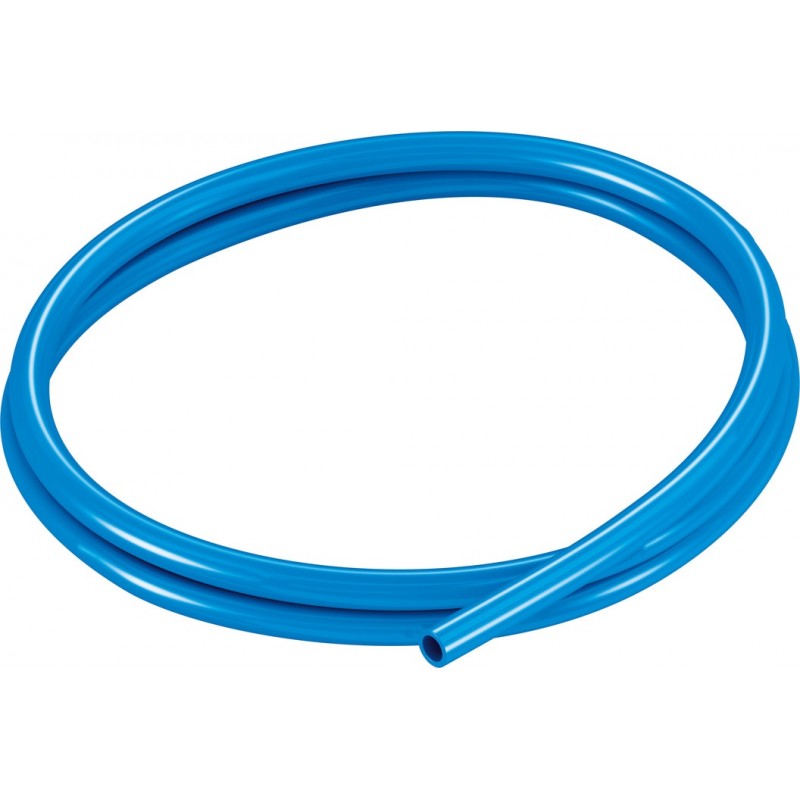

Pu Pipe PUN-H-8X1 197385

Pu Pipe PUN-H-8X1 197385
Pu Pipe PUN-H-8X1 197385
  • MODEL: PUN-H-8X1 197385
  • Weight: 0.03kg
  • LEAD TIME: 4 weeks
$0.90
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Product data sheet

  • Outside diameter8 mm
  • Bending radius relevant for flow rate37 mm
  • Inside diameter5.7 mm
  • Min. bending radius21 mm
  • Application noteTPE-U Ether based
  • Tubing characteristicsSuitable for energy chains
  • Operating pressure for entire temperature range-0.095 MPa ... 0.6 MPa
  • Operating pressure for entire temperature range-0.95 bar ... 6 bar
  • Operating pressure for entire temperature range-13.775 psi ... 87 psi
  • Temperature-dependent operating pressure-0.095 MPa ... 1 MPa
  • Temperature-dependent operating pressure-0.95 bar ... 10 bar
  • Temperature-dependent operating pressure-13.775 psi ... 145 psi
  • Information on operating pressureWater: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0 - 60 °C
  • CertificationGerman Technical Control Board (TÜV)
  • Certificate issuing authorityB 013277 0506 00
  • Operating mediumCompressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
  • Material fire testUL94 HB
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Suitability for the production of Li-ion batteriesMetals with more than 1% by mass of copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils
  • Cleanroom classStatically installed element, no meaningful evaluation possible according to ISO 14644-1
  • For use in the food industrySee supplementary material information
  • Ambient temperature-35 °C ... 60 °C
  • Product weight by length0.0287 kg/m
  • Pneumatic connectionFor plug connection outside diameter 8 mm For barbed fitting, inside diameter 6 mm, with union nut
  • ColorBlue
  • Shore hardnessD 52 +/-3
  • Note on materialsRoHS-compliant
  • Material of pneumatic tubingTPE-U(PU)
