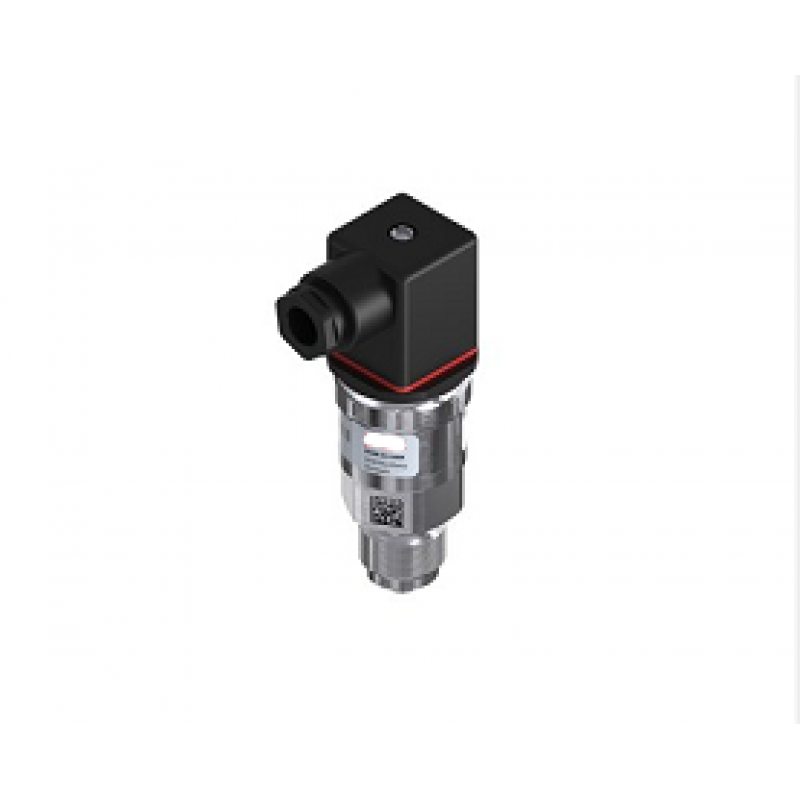

Pressure transmitter-060G3011

Pressure transmitter-060G3011
Pressure transmitter-060G3011
  • MODEL: 060G3011
  • Weight: 0.20kg
  • LEAD TIME: In stock
$339.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Product data sheet


supplyPin 1
- commonPin 2
Accuracy, max. [±FS%]0.8 %
Accuracy, typical [±FS%]0.3 %
Ambient temperature range [°C] [max]85 °C
Ambient temperature range [°C] [min]-40 °C
Ambient temperature range [°F] [max]185 °F
Ambient temperature range [°F] [min]-40 °F
ApprovalATEX
Approval commentsATEX Ex ec IIA T4 Gc
China RoHS complianceYes
Compensated temp. range [°C] [max]80 °C
Compensated temp. range [°C] [min]0 °C
Compensated temp. range [°F] [max]176 °F
Compensated temp. range [°F] [min]32 °F
EEE category5 small equipment (any external dimension 50 cm)​
Electrical conn. Male/FemaleMale and Female
Electrical connectionAngular connector
Electrical connection sizePg 9
Electrical connection standardEN 175301-803-A
Enclosure rating IPIP65
EU RoHS complianceYes
EU RoHS exemption clauseNo
Flush diaphragmNo
High Clipping Level22.4
Identical product060G4001
In scope of WEEEYes
In scope of WEEE and contain batteriesNo
International Article Number5702423030026
Intrinsically safeNo
Low Clipping level3.6
Medium temperature range [°C] [max]85 °C
Medium temperature range [°C] [min]-40 °C
Medium temperature range [°F] [max]185 °F
Medium temperature range [°F] [min]-40 °F
Non-linearity BFSL [±FS%]0.2 %
Output signalCurrent
Output signal [mA] [max]20 mA
Output signal [mA] [min]4 mA
Overload pressure max. [bar]20 bar
Packing formatMulti pack
Pressure connection HEX [mm]27 mm
Pressure connection size1/2
Pressure connection standardEN 837
Pressure connection typeG
Pressure Male/FemaleMale
Pressure range [bar] [max]10 bar
Pressure range [bar] [min]0 bar
Pressure range [psi] [max]145 psi
Pressure range [psi] [min]0 psi
Pressure referenceGauge (relative)
Product groupSensors
Product Name DescriptionPressure transmitter
Pulse-snubberNo
Quantity per packing format14 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Response time max. [ms]4 ms
SCIP dossier no.16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d
SCIP dossier product nameAKS/MBS
Specification keyMBS 33-2011-A1AB08-0
Supply current max. [mA]28 mA
Supply voltage [V] DC [max]32 V
Supply voltage [V] DC [max]32 V
Supply voltage [V] DC [min]9 V
Supply voltage [V] DC [min]9 V
TypeMBS 33
UK RoHS complianceYes
