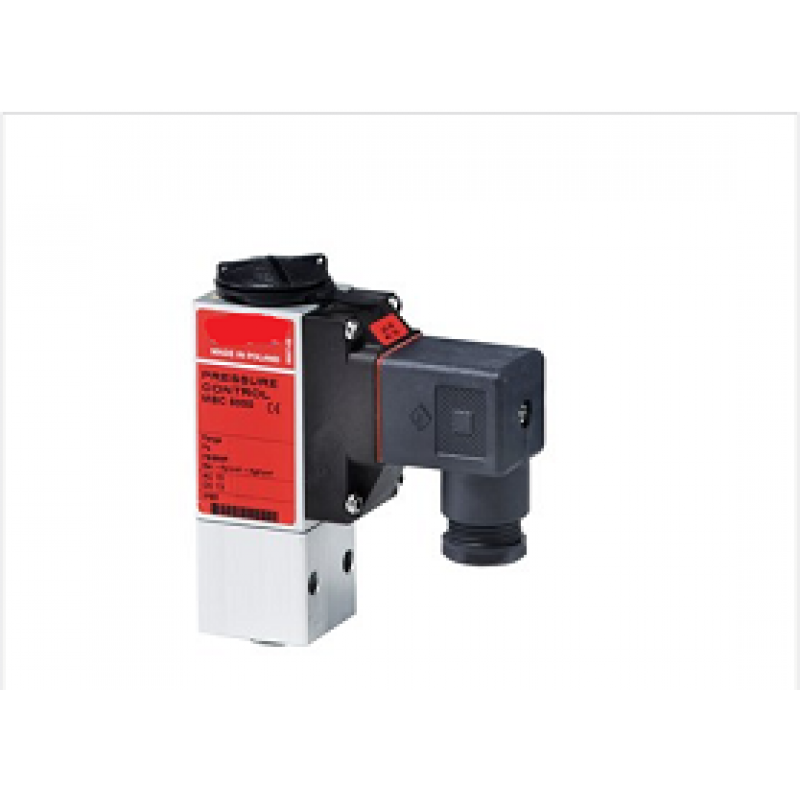

Pressure switch-061B201266

Pressure switch-061B201266
Pressure switch-061B201266
  • MODEL: 061B201266
  • Weight: 0.30kg
  • LEAD TIME: In stock
$162.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Product data sheet


Alarm SignalFalling
Ambient temperature range [°C] [max]85 °C
Ambient temperature range [°C] [min]-40 °C
Ambient temperature range [°F] [max]185 °F
Ambient temperature range [°F] [min]-40 °F
ApprovalCCC
CE
EAC
LLC CDC EURO-TYSK
LVD
RoHS
RoHS China
UKCA
Burst pressure [bar]30 bar
China RoHS complianceYes
Contact functionSPDT
Contact ratingAC15=0.5 A, 250 V
DC13=12 W, 125 V
Diff.@Max. range setting [bar]0.45 bar
Diff.@Min. range setting [bar]0.3 bar
Electrical conn. Male/FemaleFemale
Electrical connectionDIN-plug
Electrical connection sizePg 11
Electrical connection standardEN 175301-803-A
Electrical spec. standardEN 60947-5
Enclosure rating IPIP65
EU RoHS complianceOut of scope
Factory setting [bar]0.5 bar
Factory setting [MPa]0.05 MPa
In scope of WEEE and contain batteriesNo
Max. test pressure [bar] Pe15 bar
Max. test pressure [psig]218 psig
Max. Working Pressure [bar]15 bar
Max. Working Pressure [psig]220 psig
Other RoHS documentationSaudi Arabia RoHS
Packing formatMulti pack
Pressure connection size1/4
Pressure connection standardISO 228-1
Pressure connection typeG
Pressure Male/FemaleFemale
Pressure sensing elementBellows
Product accessoriesSwitches accessories
Product descriptionPressure Switch
Product groupSwitches and thermostats
Product Name DescriptionPressure switch
Quantity per packing format32 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Regulation range [bar] Pe [max]1 bar
Regulation range [bar] Pe [min]-0.2 bar
Regulation range [MPa] Pe [max]0.1 MPa
Regulation range [MPa] Pe [min]-0.02 MPa
Reset functionAuto
SCIP dossier no.c9549e84-c103-45b0-86ec-6021ce3385c8
ServiceableNo
Specification key1011-1CB04
TypeMBC 5000
UK RoHS complianceOut of scope
