Control lock
Lockable rotating handle
Installation location
Optional
Structural characteristics

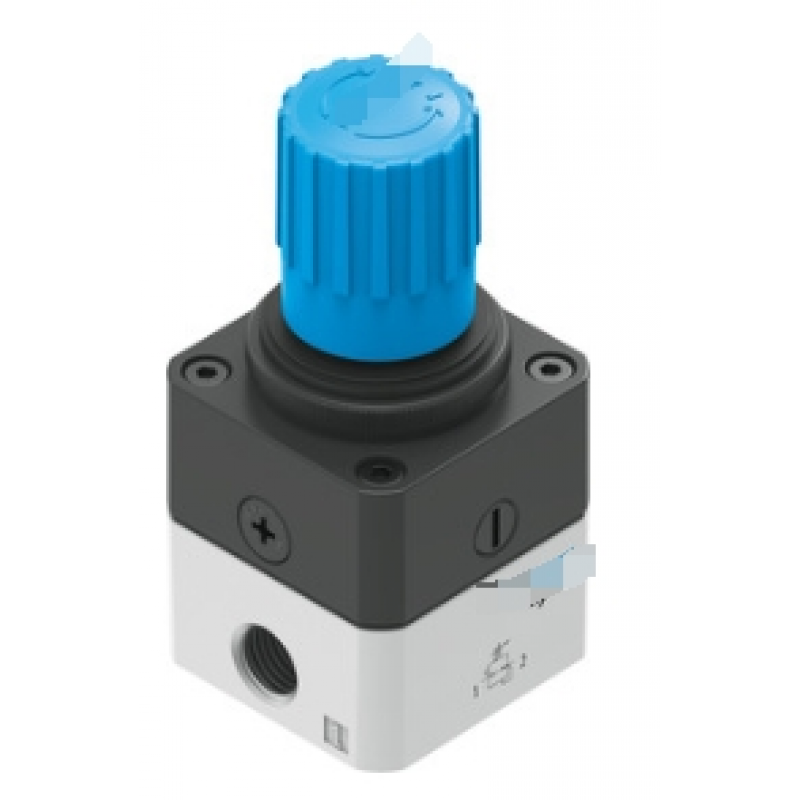

Pilot operated diaphragm precision control valve
Controller functions
Output pressure constant
With secondary exhaust
Symbol
00991540
Pressure gauge (analog) or pressure display (digital)
Prepare for G1/8
working pressure
0.1 Mpa ... 1.2 Mpa
working pressure
1 bar ... 12 bar
Pressure regulation range
0.05 bar ... 4 bar
Inlet pressure 1
1 bar ... 12 bar
Maximum pressure hysteresis
0.02 bar
Standard rated flow (standardized according to DIN 1343)
2000 l/min
Working medium
Compressed air, in accordance with ISO 8573-1:2010 [7:4:4]
inert gas
Description of Work and Pilot Media
Not working with lubricating media
Paint Wetting Defect Substance (PWIS) Compliance
VDMA24364-B1/B2-L
Medium temperature
-10 °C ... 60 °C
ambient temperature
-10 °C ... 60 °C
Product weight
310 g
Installation method
Panel installation
Tubular installation
With attachments
Air interface, air port 1
G1/4
Air interface, air port 2
G1/4
Material Description
RoHS compliance
Sealing material
NBR
Shell material
aluminium
