Specifications
Maxi
series
D
Control lock
Lockable rotating handle
Installation location
Optional
Structural characteristics

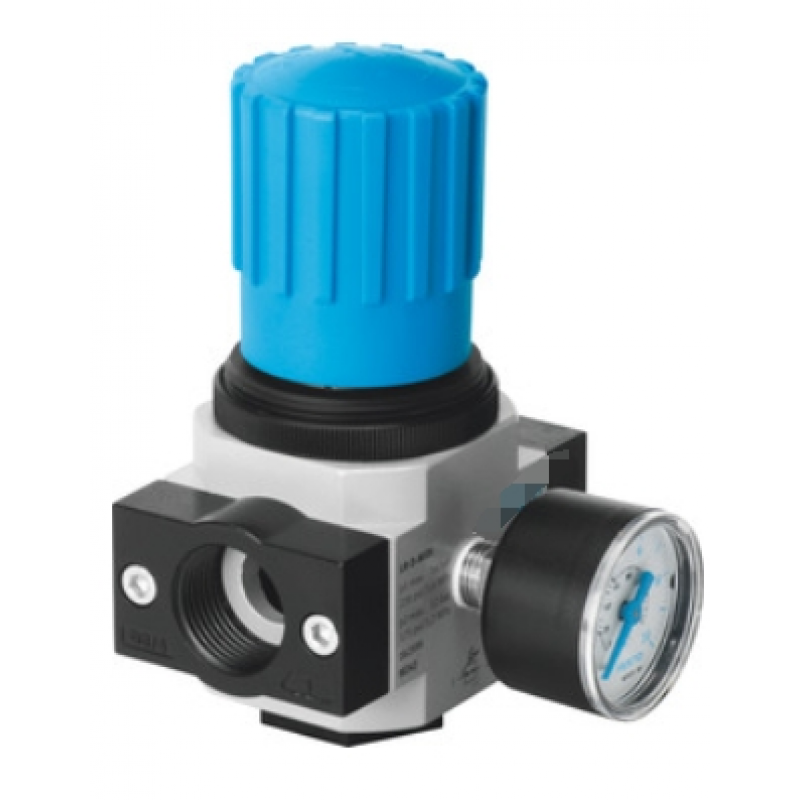

Pilot piston pressure reducing valve
Controller functions
Output pressure constant
With secondary exhaust
Symbol
00991558
Pressure gauge (analog) or pressure display (digital)
With pressure gauge
working pressure
0 Mpa ... 1.6 Mpa
working pressure
0 bar ... 16 bar
Pressure regulation range
0.5 bar ... 12 bar
Maximum pressure hysteresis
0.04 Mpa
Maximum pressure hysteresis
0.4 bar
Maximum pressure hysteresis
5.8 psi
Standard rated flow (standardized according to DIN 1343)
11000 l/min
Working medium
Compressed air, in accordance with ISO 8573-1:2010 [7:4:4]
inert gas
Description of Work and Pilot Media
Can work with lubricating medium (must continue to work with lubricating medium thereafter)
Paint Wetting Defect Substance (PWIS) Compliance
VDMA24364-B1/B2-L
Air purity level at the output port
Compressed air, in accordance with ISO 8573-1:2010 [7:4:4]
inert gas
Medium temperature
-10 °C ... 60 °C
ambient temperature
-10 °C ... 60 °C
Product weight
800 g
Installation method
Panel installation
Tubular installation
With attachments
Air interface, air port 1
G3/4
Air interface, air port 2
G3/4
Material Description
RoHS compliance
Base material
Die cast zinc
Sealing material
NBR
Shell material
Die cast zinc
