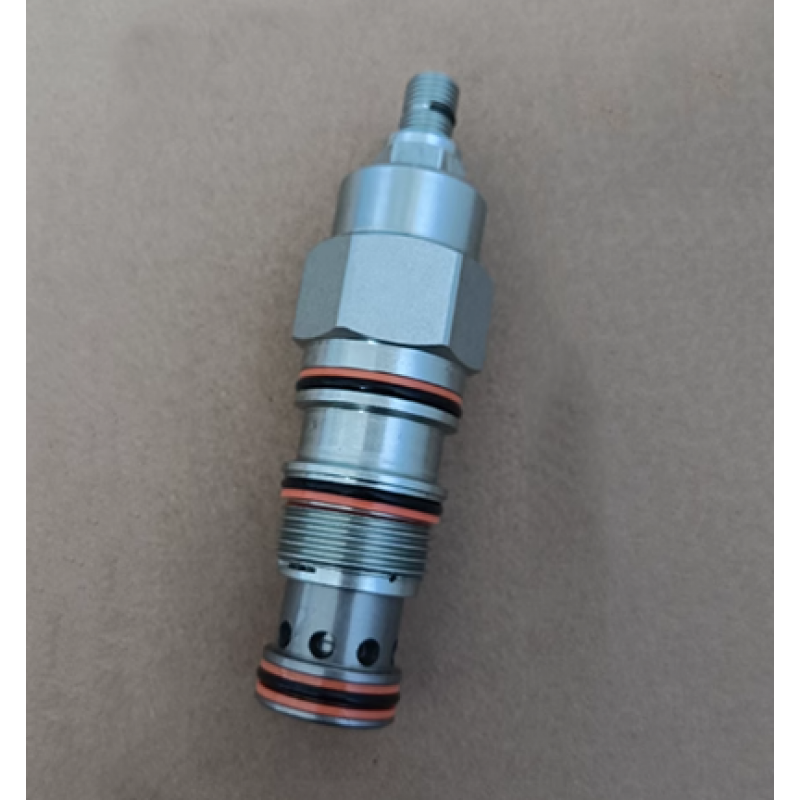

PRESSURE REGULATOR VALVE RVCA-LAN

PRESSURE REGULATOR VALVE RVCA-LAN
PRESSURE REGULATOR VALVE RVCA-LAN
  • MODEL: RVCA-LAN
  • Weight: 35.00kg
  • LEAD TIME: 1-2 weeks
$78.74
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Product data sheet

CavityT-11A
Series1
Capacity15 gpm
Maximum Operating Pressure5000 psi
Factory Pressure Settings Established at4 gpm
Control Pilot Flow7 - 10 in³/min.
Maximum Valve Leakage at 110 SUS (24 cSt)2 in³/min.@1000 psi
Response Time - Typical10 ms
Adjustment - No. of CW Turns from Min. to Max. setting5
Valve Hex Size7/8 in.
Valve Installation Torque30 - 35 lbf ft
Adjustment Screw Internal Hex Size5/32 in.
Locknut Hex Size9/16 in.
Locknut Torque80 - 90 lbf in.
Model Weight0.35 lb.
Seal kit - CartridgeBuna: 990011007
Seal kit - CartridgeEPDM: 990011014
Seal kit - CartridgePolyurethane: 990011002
Seal kit - CartridgeViton: 990011006
