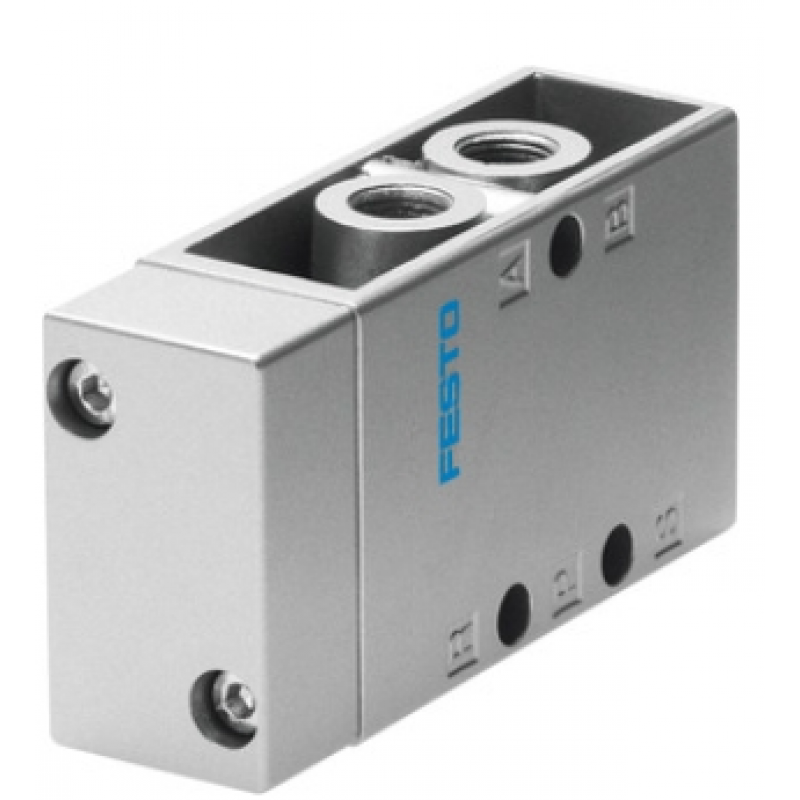

Valve function
Two position five way, monostable state
Driving method
Pneumatic
width
30.5 mm
Standard rated flow (standardized according to DIN 1343)
800 l/min
Working air port
G1/4
working pressure
0 Mpa ... 0.8 Mpa
working pressure
0 bar ... 8 bar
Structural characteristics
Lifting seat
Reset type
Spring return
Protection level
IP65
Nominal diameter
7 mm
Grid size
32 mm
Exhaust function
With throttling options
Sealing principle
Soft sealing
Installation location
Optional
Leading type
direct
Pilot gas source
external
flow to
Irreversibility
Symbol
00991001
Overlap
overlap
Pilot pressure Mpa
0.12 Mpa ... 1 Mpa
Pilot pressure
1.2 bar ... 10 bar
Closing time
11 ms
Open time
7 ms
Working medium
Compressed air, in accordance with ISO 8573-1:2010 [7:4:4]
Description of Work and Pilot Media
Can work with lubricating medium (must continue to work with lubricating medium thereafter)
Corrosion resistance grade CRC
1- Low corrosion resistance
Paint Wetting Defect Substance (PWIS) Compliance
VDMA24364-B1/B2-L
Storage temperature
-20 °C ... 60 °C
Medium temperature
-10 °C ... 60 °C
Leading medium
Compressed air, in accordance with ISO 8573-1:2010 [7:4:4]
ambient temperature
-10 °C ... 60 °C
Product weight
220 g
Installation method
or
On the pneumatic board
With through-hole
Pilot air port 14
G1/8
Air interface, air port 1
G1/4
Air interface, air port 2
G1/4
Air interface, air port 3
G1/4
Air interface, air port 4
G1/4
Air interface, air port 5
G1/4
Material Description
RoHS compliance
Sealing material
NBR
TPE-U(PU)
Shell material
Die cast aluminum
