Specifications
standard
Nominal diameter
4.6 mm
The type of seal that is screwed into the screw
coating
Installation location
Optional

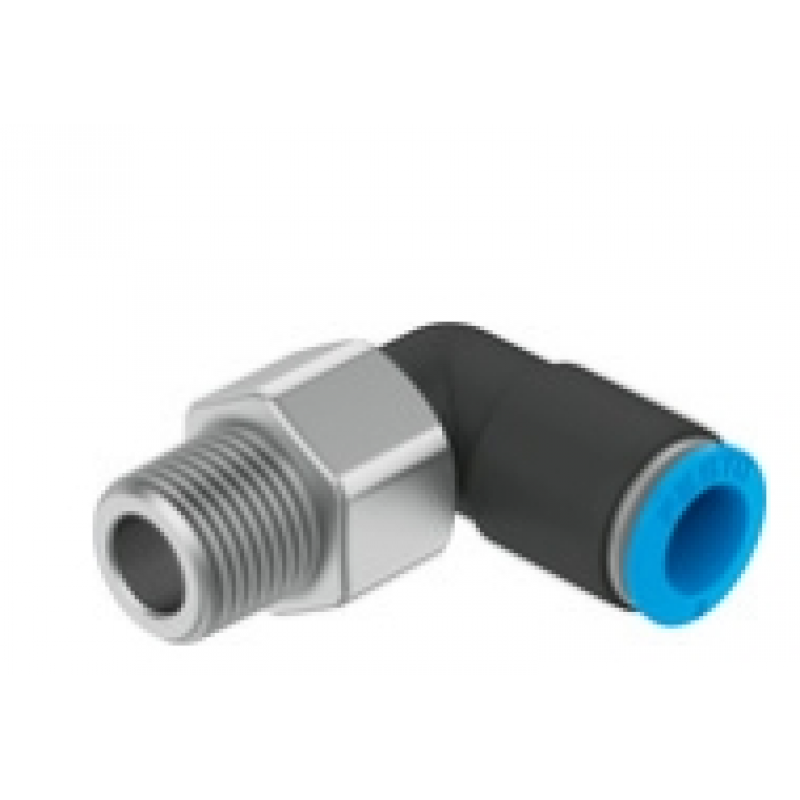

Design
L-shaped
Package specifications
one
Structural characteristics
Push-pull principle
Complete temperature range under working pressure
-0.095 Mpa ... 0.6 Mpa
Working pressure complete temperature range
-0.95 bar ... 6 bar
Complete temperature range under working pressure
-13.775 psi ... 87 psi
Working pressure dependent on temperature
-0.095 Mpa ... 1.4 Mpa
Working pressure dependent on temperature
-0.95 bar ... 14 bar
Working pressure dependent on temperature
-13.775 psi ... 203 psi
Maximum speed
400 1/min
Working medium
Compressed air, in accordance with ISO 8573-1:2010 [7: -: -]
Description of Work and Pilot Media
Working with lubricating media available
Corrosion resistance grade CRC
1- Low corrosion resistance
Paint Wetting Defect Substance (PWIS) Compliance
VDMA24364-B1/B2-L
ambient temperature
0 °C ... 60 °C
Maximum radial torque
0.015 Nm
Nominal torque
9 Nm
Nominal tightening torque tolerance
± 20%
Product weight
32 g
Installation method
Outer hexagon, specification 17 mm
Air interface, air port 1
External thread R1/4
Air interface, air port 2
Suitable for tracheal outer diameter of 8 mm
Release Ring Color
blue
Material for screwing in screws
Nickel plated brass
Material Description
RoHS compliance
Shell material
PBT
Release ring material
POM
Material of tracheal seal
NBR
Material of tracheal clamping element
High alloy stainless steel
