Specifications
standard
Installation location
Optional
Design

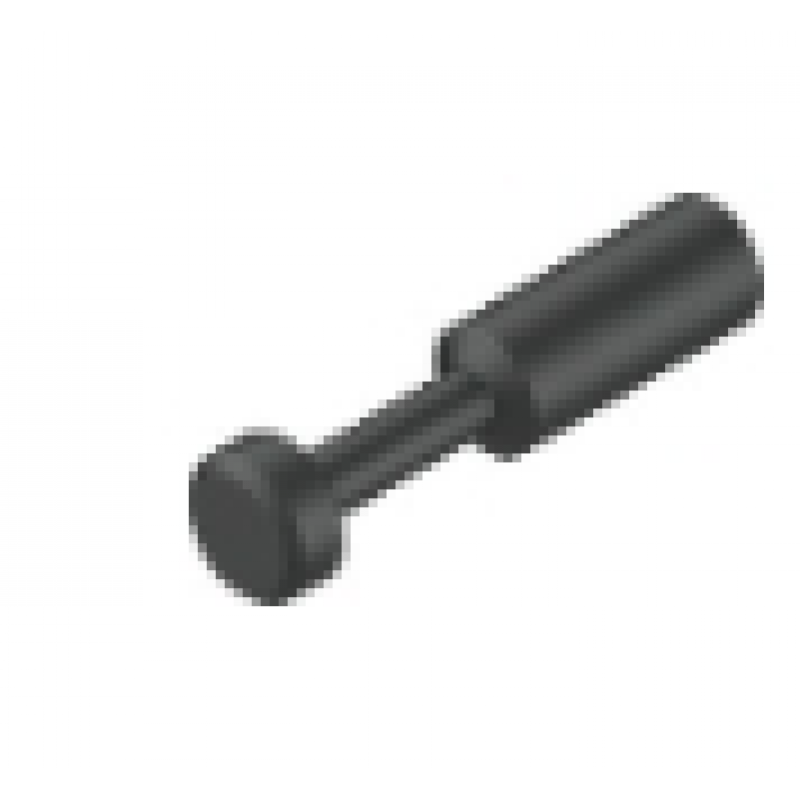

Plug
Package specifications
ten
Complete temperature range under working pressure
-0.095 Mpa ... 0.6 Mpa
Working pressure complete temperature range
-0.95 bar ... 6 bar
Complete temperature range under working pressure
-13.775 psi ... 87 psi
Working pressure dependent on temperature
-0.095 Mpa ... 1.4 Mpa
Working pressure dependent on temperature
-0.95 bar ... 14 bar
Working pressure dependent on temperature
-13.775 psi ... 203 psi
Working medium
Compressed air, in accordance with ISO 8573-1:2010 [7: -: -]
The moisture content complies with the manufacturer's declaration of conformity on www.festo.com
Description of Work and Pilot Media
Working with lubricating media available
Corrosion resistance grade CRC
1- Low corrosion resistance
Paint Wetting Defect Substance (PWIS) Compliance
VDMA24364-B1/B2-L
Cleanroom level
Static installed components cannot be meaningfully evaluated according to ISO 14644-1
ambient temperature
-10 °C ... 80 °C
Product weight
1 g
Air interface, air port 1
Insert type shaft sleeve Ø 8 mm
Material Description
RoHS compliance
Shell material
PBT
