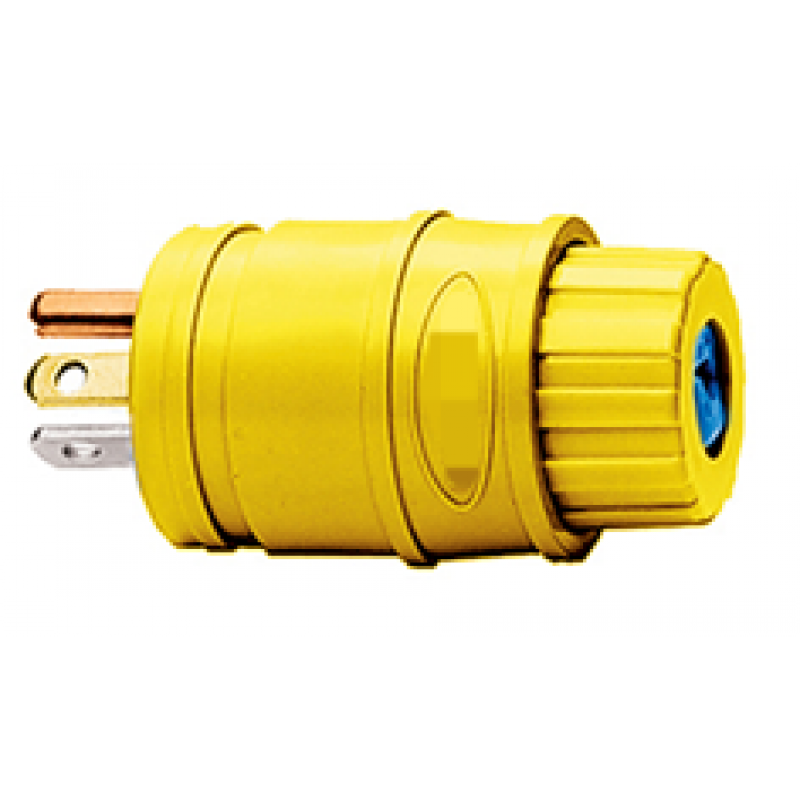

plug HBL14W33

Specifications

Housing PVC

Blade Holder Nylon

Terminal Retainer Clear Polycarbonate

Blades .060" (1.5) Brass

Terminal Screws #8-32 Brass , multiple drive

Terminal Clamp Nickel plated steel

Assembly Screws Plated steel

Performance

Electrical

Current Interrupting Certified for current interrupting at full rated current

Dielectric Voltage Withstands 2,000V minimum

Mechanical

Product Identification Ratings are a permanent part of the device

Terminal Accommodation #18-#12 AWG. Stranded copper wire only.

Terminal Identification Terminals identified in accordance with UL 498 and CSA

Environmental

Flammability UL 94 V-2

IP Suitability IP55

Operating Temperatures Maximum continuous 75°C; minimum -40°C (w/o impact)
