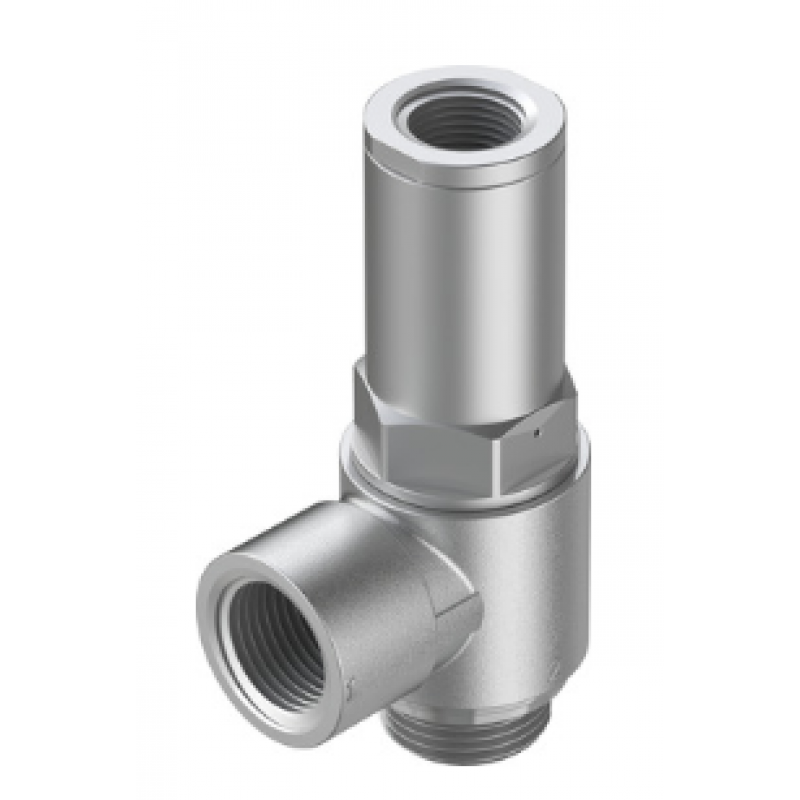

Piloted non return valve HGL-1/2-B 530033

Piloted non return valve HGL-1/2-B 530033
Piloted non return valve HGL-1/2-B 530033
  • MODEL: HGL-1/2-B
  • LEAD TIME: in stock
$44.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Product data sheet

  • Valve functionUnlockable non-return function
  • Pneumatic connection 1G1/2
  • Pneumatic connection 2G1/2
  • Pilot air port 21G3/8
  • Actuation typePneumatic
  • Type of mountingScrew-in With external thread
  • Operating pressure0.05 MPa ... 1 MPa
  • Operating pressure0.5 bar ... 10 bar
  • Pilot pressure MPa0.1 MPa ... 1 MPa
  • Pilot pressure1 bar ... 10 bar
  • Pilot pressure psi14.5 psi ... 145 psi
  • Ambient temperature-10 °C ... 60 °C
  • Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
  • Maritime classificationSee certificate
  • Mounting positionAny
  • Symbol00991456
  • Standard flow rate 1->2 (6-0)2100 l/min
  • Standard nominal flow rate 1->2 (6-5)1600 l/min
  • Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
  • Corrosion resistance class (CRC)2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Cleanroom classClass 4 according to ISO 14644-1
  • Storage temperature-10 °C ... 60 °C
  • Temperature of medium-10 °C ... 60 °C
  • Pilot mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
  • Nominal tightening torque14 Nm
  • Tolerance for nominal tightening torque± 10%
  • Product weight129.4 g
  • Note on materialsRoHS-compliant
  • Seals materialNBR
  • Hollow bolt materialWrought aluminum alloy Anodized
  • Releasing ring materialPOM
  • Non-return collar materialNBR
  • Swivel joint materialDie-cast zinc
