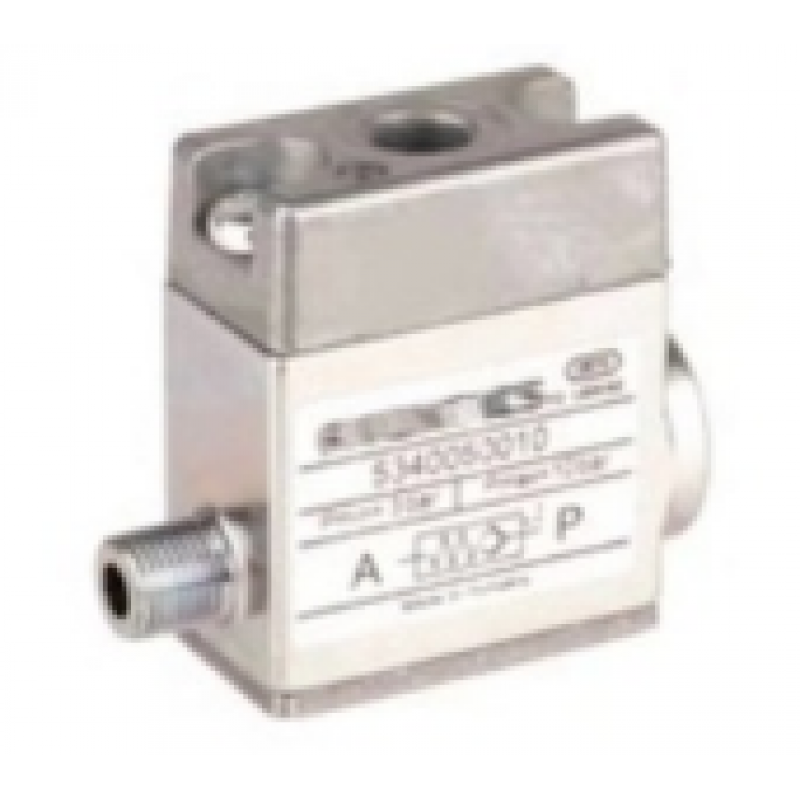

Pilot-operated non-return valve, Series NR02 5340051010

Pilot-operated non-return valve, Series NR02 5340051010

Pilot-operated non-return valve, Series NR02 5340051010

MODEL: 5340051010
LEAD TIME: 8 weeks

$37.50

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Product data sheet

Compressed air connection 1

G 1/4

Compressed air connection type 1: Internal thread

Mounting: installing in piping

Compressed air connection type 2: External thread

Type: Poppet valve

Compressed air connection 2: R 1/4

Compressed air connection 12: G 1/8

Nominal flow Qn 1 to 2: 1000 l/min

Working pressure min.: 3 bar

Working pressure max: 10 bar

Min. ambient temperature: -25 °C

Max. ambient temperature: 80 °C

Min. medium temperature: -10 °C

Max. medium temperature: 60 °C

Medium: Compressed air

Weight: 0.132 kg

Housing material: Die cast zinc

Seal material: Acrylonitrile butadiene rubber
