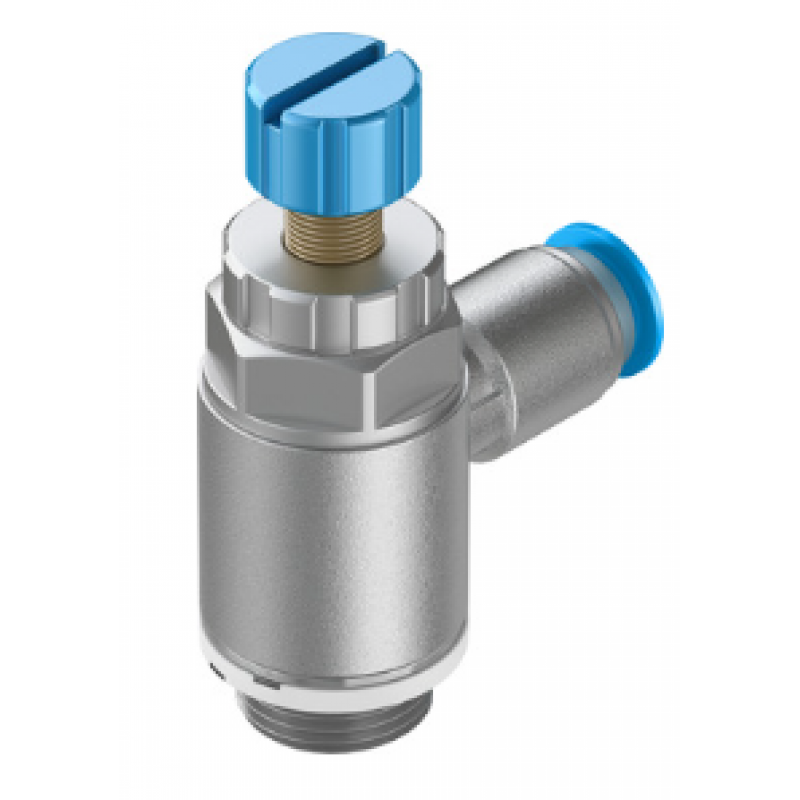

One-way flow control valve GRLA-3/8-QS-8-RS-D 534342

One-way flow control valve GRLA-3/8-QS-8-RS-D 534342
One-way flow control valve GRLA-3/8-QS-8-RS-D 534342
  • MODEL: GRLA-3/8-QS-8-RS-D
  • LEAD TIME: 3 days
$11.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Product data sheet

  • Valve functionFlow control non-return function
  • Pneumatic connection 1QS-8
  • Pneumatic connection 2G3/8
  • Adjusting elementKnurled screw
  • Type of mountingScrew-in With external thread
  • Standard nominal flow rate in flow control direction820 l/min
  • Standard nominal flow rate in non-return direction450 l/min ... 850 l/min
  • Operating pressure0.2 bar ... 10 bar
  • Ambient temperature-10 °C ... 60 °C
  • Maritime classificationSee certificate
  • Mounting positionAny
  • Symbol00991452
  • Operating pressure for entire temperature range0.2 bar ... 10 bar
  • Standard flow rate in flow control direction 6 -> 0 bar1300 l/min
  • Standard flow rate in non-return direction at 6 -> 0 bar1080 l/min ... 1420 l/min
  • Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
  • Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Cleanroom classClass 4 according to ISO 14644-1
  • Storage temperature-10 °C ... 40 °C
  • Temperature of medium-10 °C ... 60 °C
  • Nominal tightening torque10 Nm
  • Product weight72 g
  • Note on materialsRoHS-compliant
  • Seals materialNBR
  • Hollow bolt materialWrought aluminum alloy Anodized
  • Releasing ring materialPOM
  • Knurled head materialWrought aluminum alloy Anodized
  • Material of adjusting screwHigh-alloy stainless steel
  • Swivel joint materialDie-cast zinc
