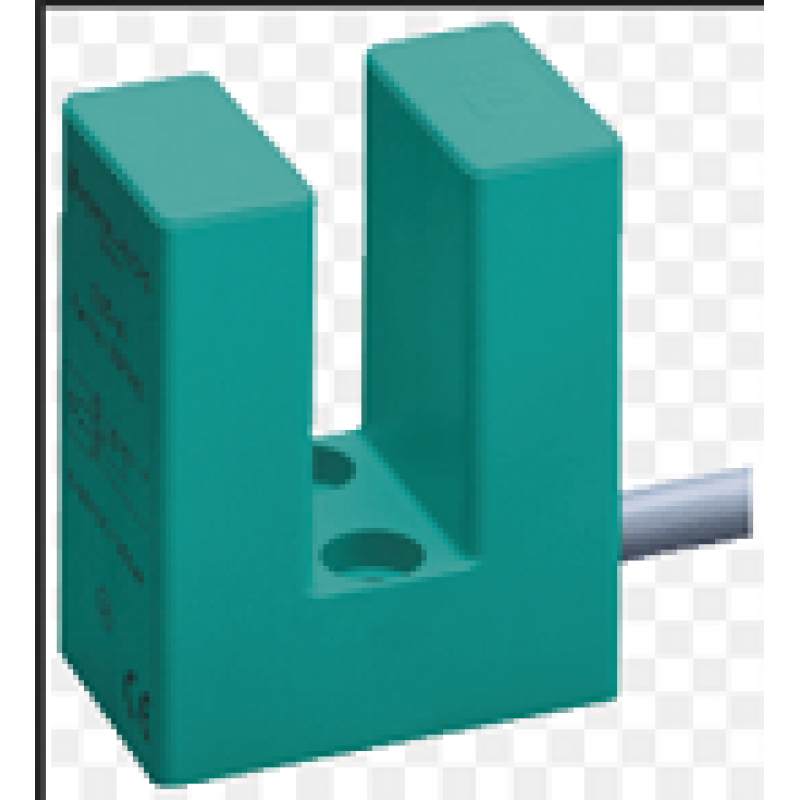

nductive slot sensor-SJ15-E2-V1-Y40122

nductive slot sensor-SJ15-E2-V1-Y40122
nductive slot sensor-SJ15-E2-V1-Y40122
  • MODEL: SJ15-E2-V1-Y40122
  • Weight: 0.10kg
  • LEAD TIME: 6 weeks
$186.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Product data sheet


Switching functionNormally open (NO)
Output typePNP
Slot width15 mm
Depth of immersion (lateral)17 ... 20 mm
Installationnon-flush
Output polarityDC
Output type3-wire
Operating voltage10 ... 30 V
Switching frequency0 ... 500 Hz
Reverse polarity protectionreverse polarity protected
Short-circuit protectionpulsing
Voltage drop≤ 3 V
Operating current0 ... 200 mA
No-load supply current≤ 20 mA
MTTFd1500 a
Mission Time (TM)20 a
Diagnostic Coverage (DC)0 %
UL approvalcULus Listed, General Purpose
CCC approvalCCC approval / marking not required for products rated ≤36 V
Ambient temperature-25 ... 70 °C (-13 ... 158 °F)
Connection typeConnector plug
Housing materialPBT
Degree of protectionIP67
Connector
ThreadingM12 x 1
Number of pins4
Mass104 g
Dimensions
Height60 mm
Width30 mm
Length48 mm
