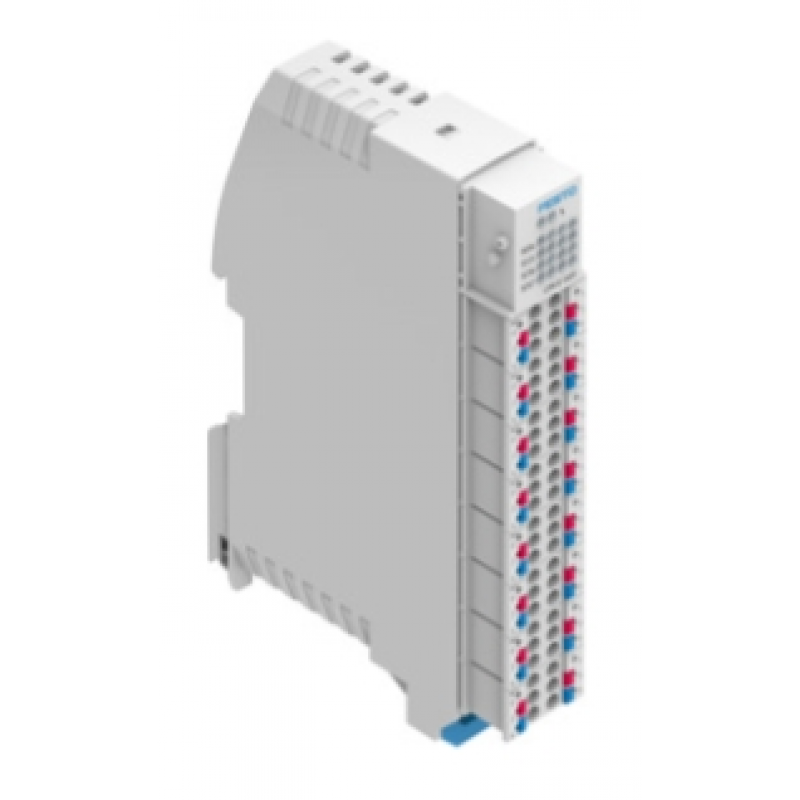

Dimensions (width x length x height)
18.9 x 76.6 x 124.3 mm
Grid size
18.9 mm
Installation method
By H-shaped guide rail
Product weight
93 g
Installation location
vertical
level
ambient temperature
-5 ° C 50 ° C
Environmental temperature description
-Vertical installation at 5-60 ° C
Storage temperature
-20 ° C 70 ° C
Relative air humidity
95%
non-condensing
Protection level
IP20
Corrosion resistance grade CRC
0- No corrosion resistance
Vibration resistance
Transport application testing, severity level 1, in compliance with FN 942017-4 and EN 60068-2-6 standards
Impact resistance
Impact test, severity level 1, in accordance with FN 942017-5 and EN 60068-2-27 standards
Protection from direct and indirect contact
PELV
Maximum cable length
30 m output
Paint Wetting Defect Substance (PWIS) Compliance
VDMA24364 Zone III
CE certification (see declaration of conformity)
Compliant with EU Electromagnetic Compatibility Directive
Compliant with EU RoHS Directive
CE marking (see declaration of conformity)
Compliant with UK EMC Directive
Compliant with UK RoHS Directive
KC marking
KC-EMV
authentication
RCM trademark
UL us certification (OL)
Certificate issuing authority
UL E239998
Material Description
RoHS compliance
Shell material
PA
Diagnosis through LED
Errors for each channel
Errors for each module
The status of each channel
Diagnosis through bus
Module error
Short circuit/overload during output
Undervoltage of load power supply
Maximum address capacity, output
1 Byte
Output quantity
eight
Module parameters
Output short circuit diagnosis
Diagnose undervoltage in load power supply
Performance after short circuit/overload
Channel parameters
Force channel x
Power supply, interface type
Wiring terminal block
Power supply, connecting the system
Spring crimping terminal
Power supply, interface style
00995847
Power supply, interface style
four
The nominal working voltage of the load, DC
24 V
The allowable voltage fluctuation of the load
± 25%
Power supply, wire diameter
0.2 mm ² 1.5 mm ²
Power supply, instructions on wire diameter
0.2-2.5mm ², for flexible wires without wire end sleeves
Intrinsic current consumption under nominal operating voltage load
Typical value 34 mA
Reverse polarity protection
24 V load against 0 V load
Electrical interface output, function
Digital output
Electrical interface output, connection type
4x wiring terminal block
Electrical interface output, connecting the system
Spring crimping terminal
Electrical interface output, number of interfaces/cores
four
Electrical interface output, interface style
00995846
Output electrical interface, wire cross-section
0.2 mm ² 1.5 mm ²
Electrical interface output, wire cross-section description
0.2-2.5mm ², for flexible wires without wire end sleeves
Output features
Compliant with IEC 61131-2, type 0.5
Output switch logic
PNP (positive switching)
Behavior after output overload ends
No automatic recovery (default)
Parameterizable (module by module)
Maximum residual current output for each module
4 A
Isolation Channel - Channel
no
Isolation Channel - Internal Bus
yes
Fusing protection (short circuit)
Each channel has internal electronic fuses
