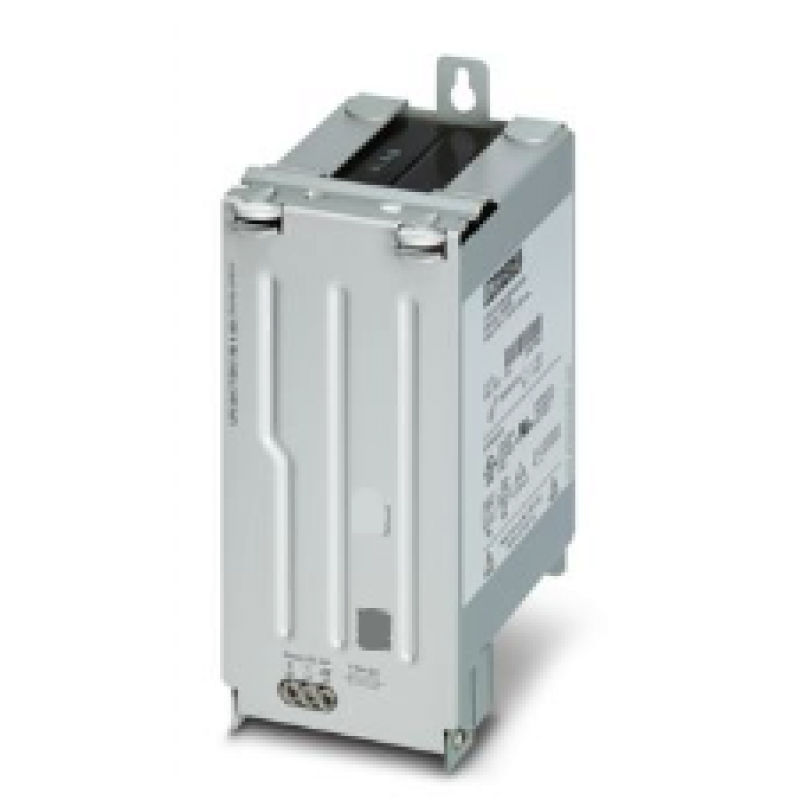

module 1274117

Input

Input voltage 24 V DC (SELV)

Rated capacity 4 Ah

Charging current 1.2 A

End of charge 27.6 V DC (20 °C)

Output

Output voltage 24 V DC

Output current max. 25 A

Output fuse 1x 25 A

Buffer time 4.5 min. (20 A)

3 min. (25 A)

Overview

Parallel Yes

max. 5

Serial connection no

Battery type BB Battery

HR4.2-12FR

Battery technology VRLA-AGM

IQ-Technology yes

Specification Model Block

Battery Pack Yes

For fast charging Yes

Temperature sensor Yes

Product Size

Width 85 mm

Height 191 mm

Depth 110 mm

Drilled holes

Diameter 5 mm

Mounting dimensions

Mounting distance left/right 0 mm / 0 mm

Mounting distance top/bottom 5 mm / 5 mm
