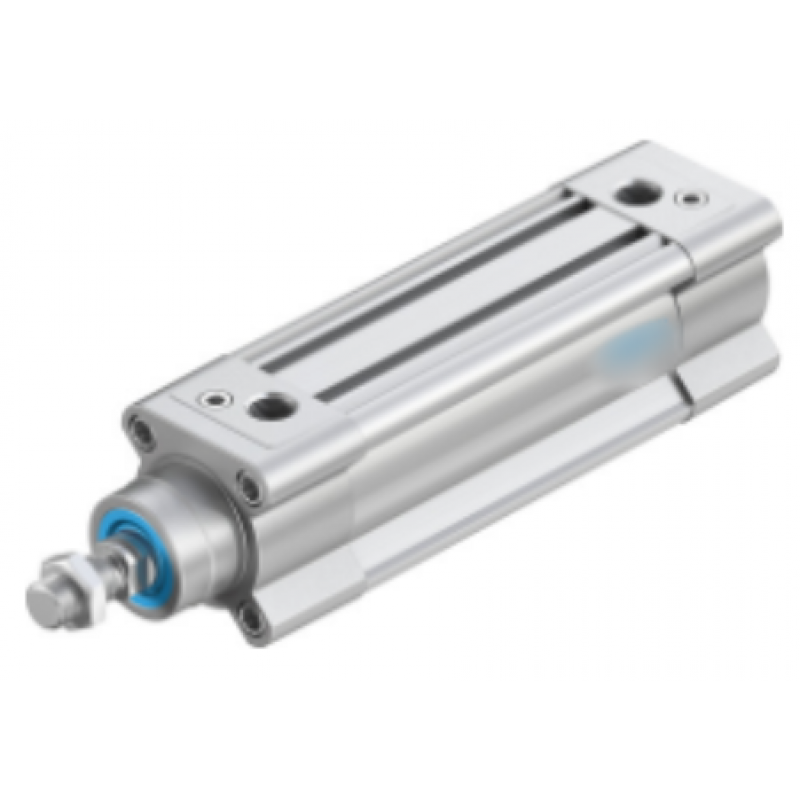

ISO cylinder DSBC-40-80-PPVA-N3

ISO cylinder DSBC-40-80-PPVA-N3
ISO cylinder DSBC-40-80-PPVA-N3
  • MODEL: DSBC-40-80-PPVA-N3
  • LEAD TIME: in stock
$43.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Product data sheet

  • Stroke80 mm
  • Piston diameter40 mm
  • Piston rod threadM12x1.25
  • CushioningPneumatic cushioning, adjustable at both ends
  • Mounting positionoptional
  • Conforms to standardISO 15552
  • Piston-rod endMale thread
  • DesignPiston Piston rod Profile barrel
  • Position detectionVia proximity switch
  • Symbol00991235
  • VariantsPiston rod at one end
  • Operating pressure0.06 MPa ... 1.2 MPa
  • Operating pressure0.6 bar ... 12 bar
  • Mode of operationDouble-acting
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Cleanroom classClass 6 according to ISO 14644-1
  • Ambient temperature-20 °C ... 80 °C
  • Impact energy in end positions0.7 J
  • Cushioning length19 mm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke633 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke754 N
