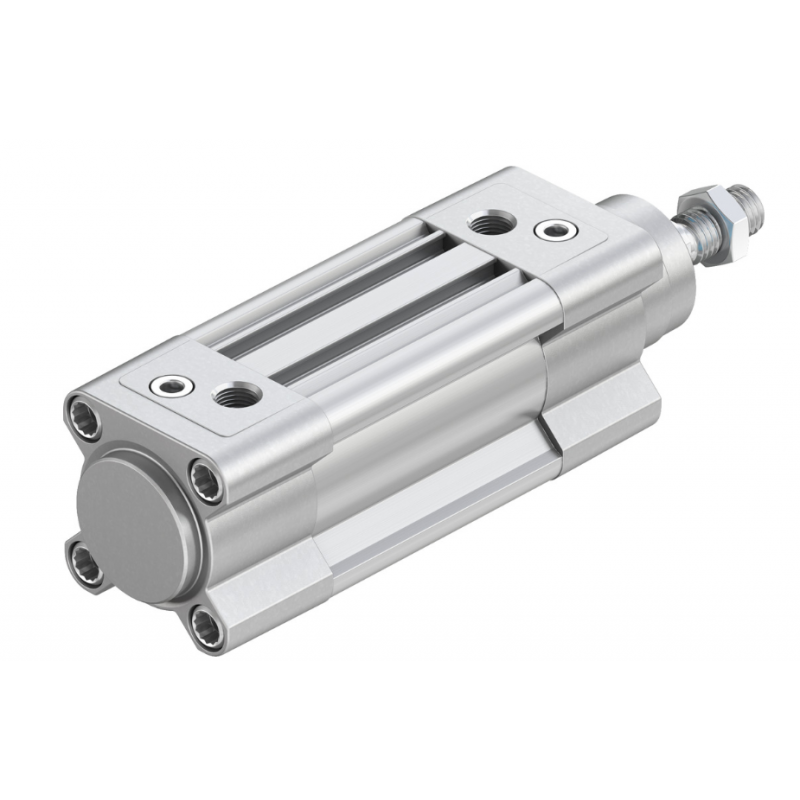

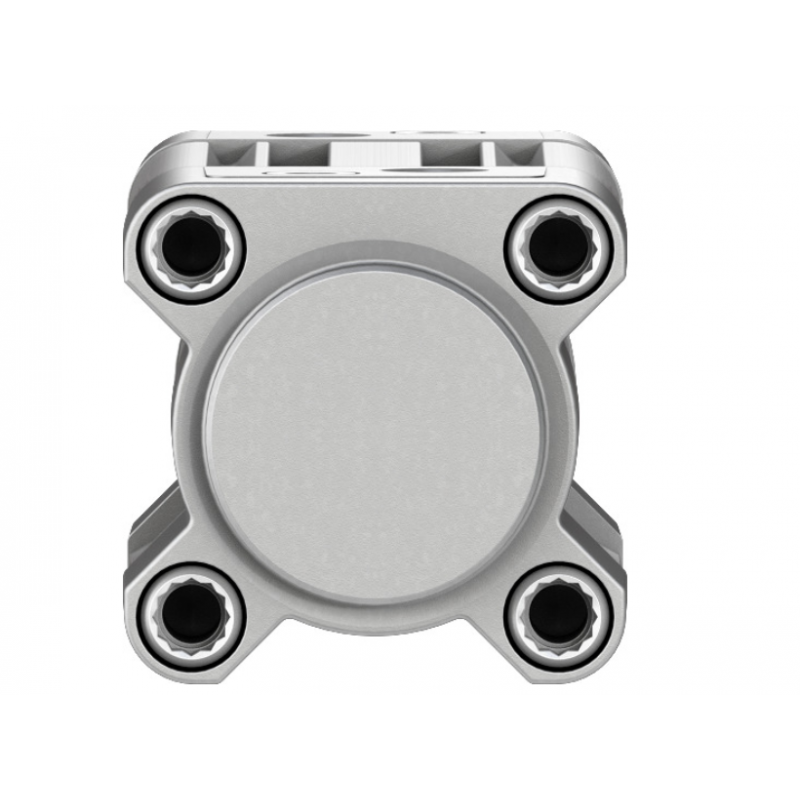

ISO cylinder, DSBC-32-25-PPVA-N3 1376422

ISO cylinder, DSBC-32-25-PPVA-N3 1376422
ISO cylinder, DSBC-32-25-PPVA-N3 1376422
ISO cylinder, DSBC-32-25-PPVA-N3 1376422
ISO cylinder, DSBC-32-25-PPVA-N3 1376422
ISO cylinder, DSBC-32-25-PPVA-N3 1376422
  • MODEL: DSBC-32-25-PPVA-N3
  • LEAD TIME: in stock
$42.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Product data sheet

  • Stroke25 mm
  • Piston diameter32 mm
  • Piston rod threadM10x1.25
  • CushioningPneumatic cushioning, adjustable at both ends
  • Mounting positionAny
  • Conforms to standardISO 15552
  • Piston rod endExternal thread
  • Structural designPiston Piston rod Profile barrel
  • Position sensingFor proximity sensor
  • Symbol00991235
  • VariantsPiston rod at one end
  • Operating pressure0.06 MPa ... 1.2 MPa
  • Operating pressure0.6 bar ... 12 bar
  • Mode of operationDouble-acting
  • Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
  • Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
  • Corrosion resistance class (CRC)2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Cleanroom classClass 6 according to ISO 14644-1
  • Ambient temperature-20 °C ... 80 °C
  • Impact energy in the end positions0.4 J
  • Cushioning length17 mm
  • Theoretical force at 6 bar, retracting415 N
  • Theoretical force at 6 bar, advancing483 N
  • Moving mass at 0 mm stroke110 g
  • Additional moving mass per 10 mm stroke9 g
  • Basic weight with 0 mm stroke465 g
  • Additional weight per 10 mm stroke27 g
  • Type of mountingOptionally: With internal thread With accessories
  • Pneumatic connectionG1/8
  • Note on materialsRoHS-compliant
  • Cover materialDie-cast aluminum, coated
  • Piston seal materialTPE-U(PU)
  • Material of pistonWrought aluminum alloy
  • Piston rod materialHigh-alloy steel
  • Piston rod wiper materialTPE-U(PU)
  • Buffer seal materialTPE-U(PU)
  • Cushion piston materialPOM
  • Material of cylinder barrelWrought aluminum alloy, smooth-anodized
  • Nut materialSteel, galvanized
  • Material of bearingPOM
  • Flange screws materialSteel, galvanized
