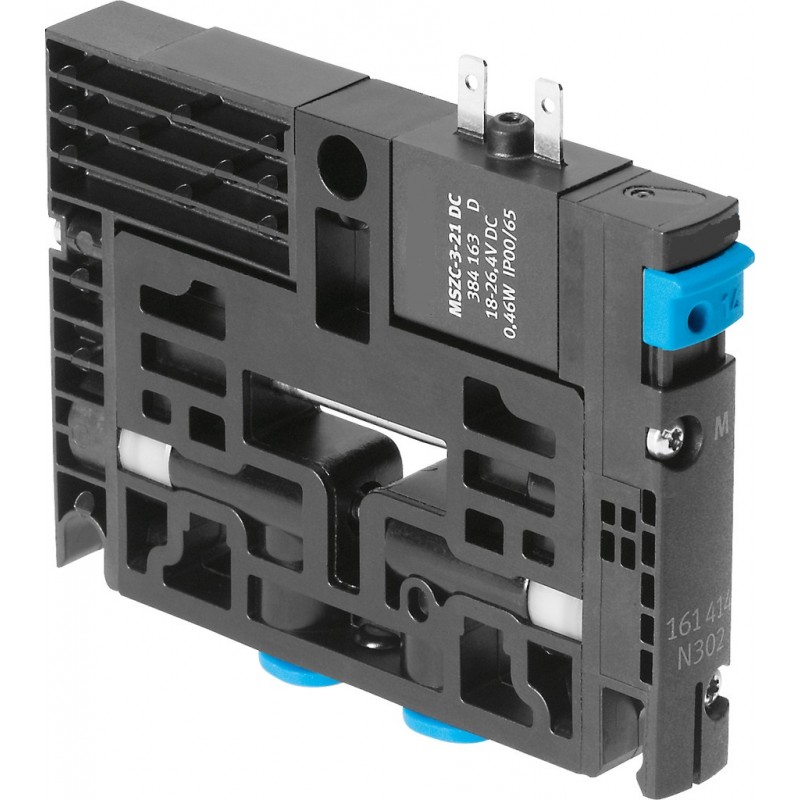

Valve function5/2 monostable
Actuation type Electrical
Valve size 10 mm
Standard nominal flow rate400 l/min
Pneumatic working portM7
Operating voltage24V DC
Operating pressure-0.09 MPa ... 1 MPa
Operating pressure-0.9 bar ... 10 bar
Structural designPiston gate valve
Reset methodPneumatic spring
Degree of protectionIP65
Nominal width4 mm
Exhaust air functionWithout flow control option
Sealing principleSoft
Mounting positionAny
Manual overrideDetenting Non-detenting
Type of controlPilot-controlled
Pilot air supply portExternal Internal
Flow directionNon-reversible
Symbol00991027
LapOverlap
Pilot pressure MPa0.3 MPa ... 0.8 MPa
Pilot pressure3 bar ... 8 bar
b-value0.4
C value1.6 l/sbar
Switching time off27 ms
On switching time17 ms
Duty cycle100% in combination with holding current reduction
Electrical power consumption0.46 W
Max. positive test pulse with 0 signal1400 µs
Max. negative test pulse on 1 signal700 µs
Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Storage temperature-20 °C ... 40 °C
Temperature of medium-5 °C ... 50 °C
Ambient temperature-5 °C ... 50 °C
Product weight70 g
Type of mountingWith through-hole
Pilot air port 12/14Common port
Pilot exhaust air port 82/84Common port
Pneumatic connection 1Common port
Pneumatic connection 11Common port
Pneumatic connection 2M7
Pneumatic port 3/5 combinedCommon port
Pneumatic connection 4M7
Note on materialsRoHS-compliant
Seals materialHNBR NBR
Housing materialDie-cast aluminum Brass POM PPS Steel
