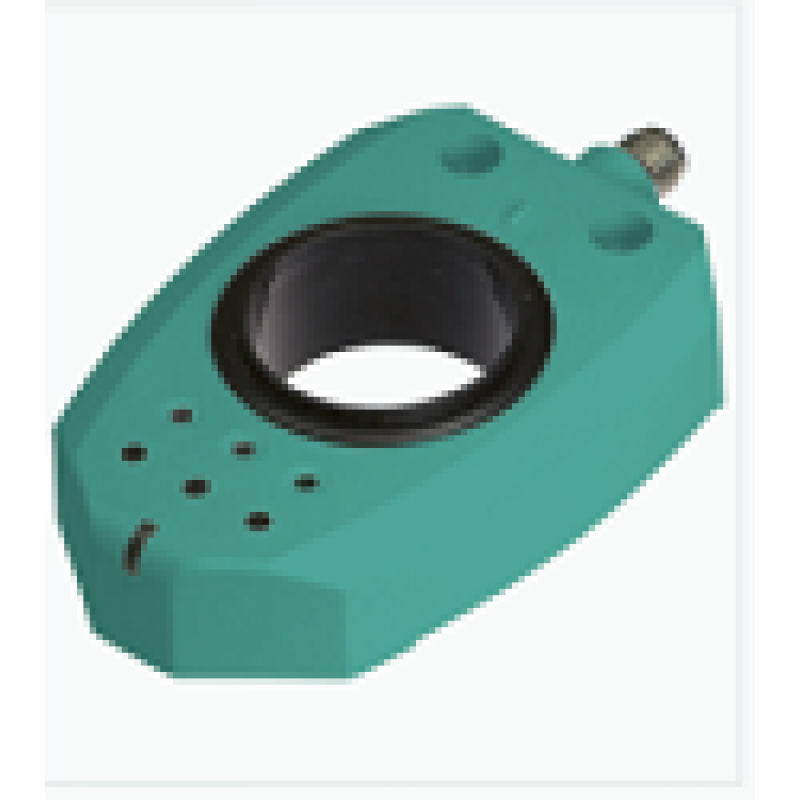

Ind. angular measuring system-PMI360DV-F130-IU2E2-V15

Ind. angular measuring system-PMI360DV-F130-IU2E2-V15
Ind. angular measuring system-PMI360DV-F130-IU2E2-V15
  • MODEL: PMI360DV-F130-IU2E2-V15
  • Weight: 0.18kg
  • LEAD TIME: 2 weeks
$380.00

Product data sheet


Measurement rangemax. 360°
min. 45°
Adjustment range2 switch frames programmable , min. 5°, max. 360°
Rotational speedmax. 100 min-1
Operating voltage18 ... 30 V DC
Reverse polarity protectionreverse polarity protected
Repeat accuracy± 0.25 °
Resolution0.2 °
Temperature drift0.02 ° / °C (-25 °C ... 70 °C)
No-load supply current≤ 45 mA
Time delay before availability1 s
MTTFd450 a
Mission Time (TM)20 a
Diagnostic Coverage (DC)0 %
LED yellow 1switching state, Switching output 1
LED yellow 2switching state, Switching output 2
LED PWR/ERRStatus display LED, green/red (Power on / missing actuator / keylock)
LED U/IActivator within measuring range
Output type2 switch outputs PNP, NO , reverse polarity protected , short-circuit protected , programmable
Operating current≤ 100 mA
Switching hysteresis1 °
Voltage drop≤ 3 V
Short-circuit protectionpulsing
Output typecurrent output or voltage output (load dependend)
4 ... 20 mA (RL < 400 Ω)
0 ... 10 V (RL > 3.3 kΩ)
Linearity error± 0.6 ° , (with original actuator)
Standard conformity
StandardsEN 60947-5-2:2007
IEC 60947-5-2:2007
UL approvalcULus Listed, General Purpose, Class 2 Power Source
CCC approvalCCC approval / marking not required for products rated ≤36 V
Ambient temperature-25 ... 70 °C (-13 ... 158 °F)
Connection type5-pin, M12 x 1 connector
Degree of protectionIP67
Material
HousingPBT
Targetmild steel, e. g. 1.0037, SR235JR (formerly St37-2)
Mass180 g
Dimensions
Height26.5 mm
Width76.5 mm
Length120 mm
