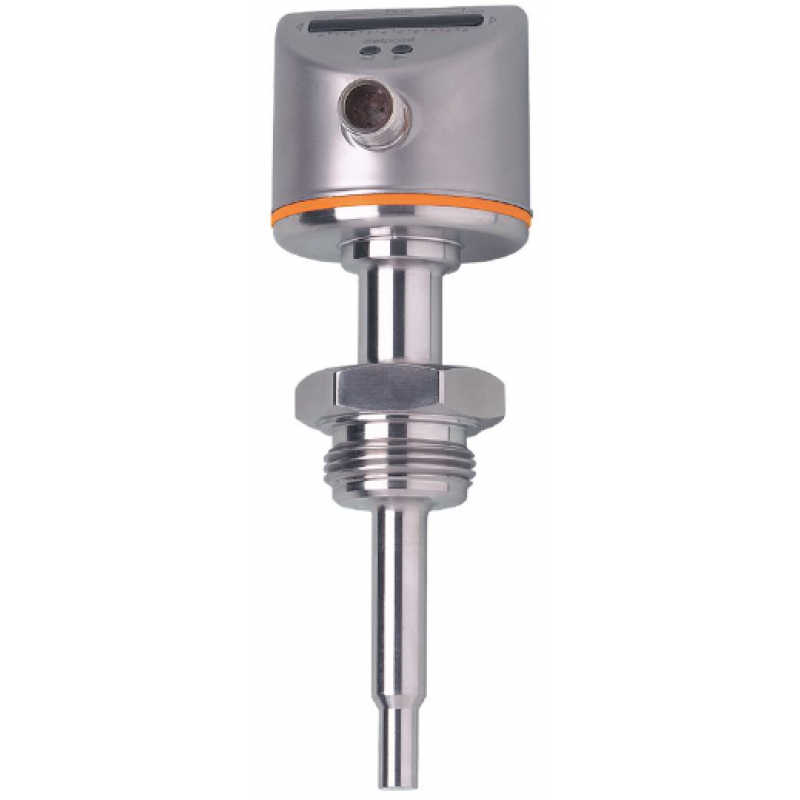

Product characteristics
| Number of inputs and outputs | Number of digital outputs: 1 |
|---|
| Process connection | Aseptoflex |
|---|
Application
| System | gold-plated contacts |
|---|
| Application | hygienic systems |
|---|
| Medium temperature [°C] | -25...95; (for SIP process: ...140 °C) |
|---|
| Pressure rating [bar] | 30 |
|---|
Electrical data
| Operating voltage [V] | 19...36 DC |
|---|
| Current consumption [mA] | < 60 |
|---|
| Protection class | III |
|---|
| Reverse polarity protection | yes |
|---|
| Power-on delay time [s] | 10 |
|---|
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 1 |
|---|
Outputs
| Total number of outputs | 1 |
|---|
| Output signal | switching signal |
|---|
| Electrical design | PNP |
|---|
| Number of digital outputs | 1 |
|---|
| Output function | normally open / closed; (configurable) |
|---|
| Max. voltage drop switching output DC [V] | 2.5 |
|---|
| Permanent current rating of switching output DC [mA] | 250 |
|---|
| Short-circuit protection | yes |
|---|
| Type of short-circuit protection | yes (non-latching) |
|---|
| Overload protection | yes |
|---|
Measuring/setting range
Liquids
| Setting range [cm/s] | 3...300 |
|---|
| Greatest sensitivity [cm/s] | 3...100 |
|---|
Gases
| Setting range [cm/s] | 200...3000 |
|---|
| Greatest sensitivity [cm/s] | 200...800 |
|---|
Accuracy / deviations
| Repeatability [cm/s] | 1...5 |
|---|
| Note on repeatability | | for water 5...100 cm/s; 25 °C | | Factory setting |
|
|---|
| Temperature drift [cm/s x 1/K] | 0.1; (for water 5...100 cm/s; 10...70 °C) |
|---|
| Max. temperature gradient of medium [K/min] | 300 |
|---|
| Switch point accuracy [cm/s] | ± 2...± 10; (for water 5...100 cm/s; 25 °C; Factory setting) |
|---|
| Hysteresis [cm/s] | 2...5; (for water 5...100 cm/s; 25 °C; Factory setting) |
|---|
Software / programming
| Adjustment of the switch point | pushbuttons |
|---|
Operating conditions
| Ambient temperature [°C] | -25...60 |
|---|
| Protection | IP 67; IP 69K |
|---|
Tests / approvals
| EMC | | EN 61000-4-2 ESD | 4 kV CD / 8 kV AD | | EN 61000-4-3 HF radiated | 10 V/m | | EN 61000-4-4 Burst | 2 kV | | EN 61000-4-6 HF conducted | 10 V |
|
|---|
| Shock resistance | | DIN IEC 68-2-27 | 50 g (11 ms) |
|
|---|
| Vibration resistance | | DIN EN 60068-2-6 | 10 g (55...2000 Hz) |
|
|---|
| MTTF [years] | 298 |
|---|
Mechanical data
| Weight [g] | 381 |
|---|
| Material | stainless steel (1.4404 / 316L); PC; PBT-GF20; EPDM/X; O-ring: FKM |
|---|
| Materials (wetted parts) | stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4 |
|---|
| Process connection | Aseptoflex |
|---|
| Installation length EL [mm] | 69.5 |
|---|
Displays / operating elements
| Display | | Function | 10 x LED, three-color |
|
|---|
Remarks
| Notes | Please do not use for new projects.; no more adapters available as accessories |
|---|
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
|---|
