Specifications
Mini
series
D
Control lock
Lockable rotating handle
Installation location
Vertical+/-5 °
Filter level
40 µm
Condensed water discharge device
Manual rotation
Structural characteristics

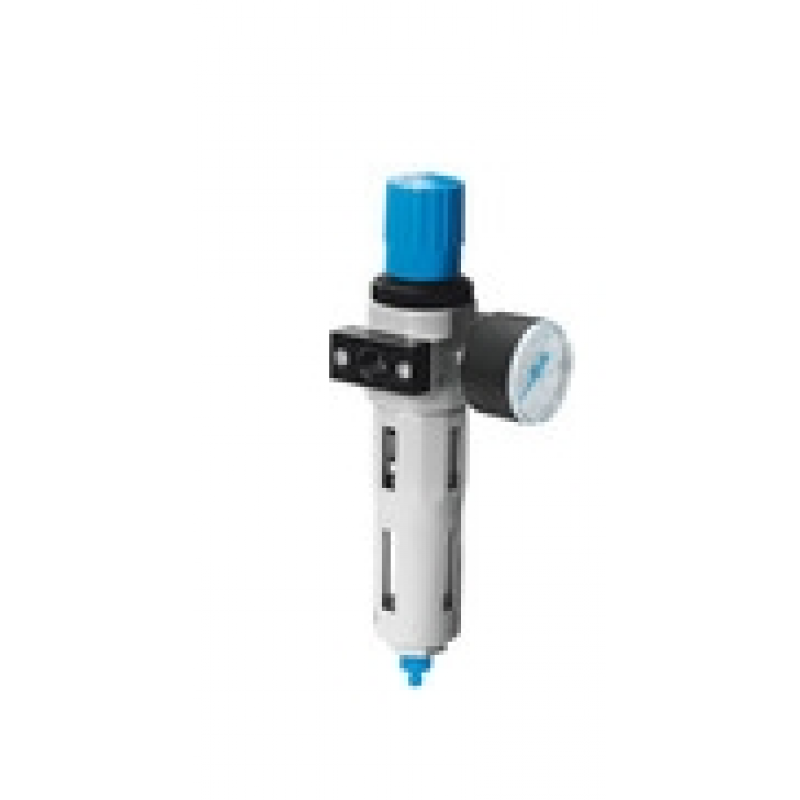

Filter pressure reducing valve with pressure gauge
Maximum condensation volume
22 ml
Protective cover
Metal protective cover
Symbol
00991585
Pressure gauge (analog) or pressure display (digital)
With pressure gauge
working pressure
1 bar ... 16 bar
Pressure regulation range
0.5 bar ... 12 bar
Maximum pressure hysteresis
0.2 bar
Standard rated flow (standardized according to DIN 1343)
1400 l/min
Working medium
Compressed air, in accordance with ISO 8573-1:2010 [-: 9: -]
inert gas
Description of Work and Pilot Media
Can work with lubricating medium (must continue to work with lubricating medium thereafter)
Corrosion resistance grade CRC
2- Moderate corrosion resistance
Paint Wetting Defect Substance (PWIS) Compliance
VDMA24364-B1/B2-L
Storage temperature
-10 °C ... 60 °C
Air purity level at the output port
Compressed air, in accordance with ISO 8573-1:2010 [7:8:4]
inert gas
Medium temperature
-10 °C ... 60 °C
ambient temperature
-10 °C ... 60 °C
Product weight
460 g
Installation method
or
Tubular installation
With attachments
Air interface, air port 1
G1/4
Air interface, air port 2
G1/4
Material Description
RoHS compliance
Shell material
Die cast zinc
Bowl cover material
PC
