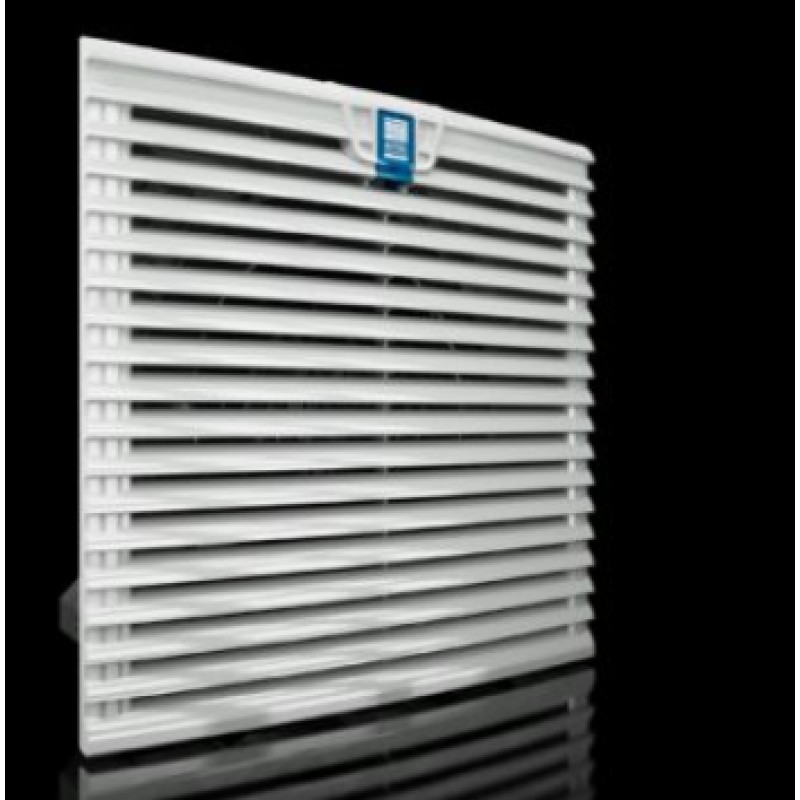

TopThermal filter fan
Product Description
Product number:
SK 3239.100
Product Description
The filter fan using oblique flow fan technology has a more stable pressure and can provide a more constant airflow. The oblique flow air outlet technology can achieve uniform heat dissipation of the control cabinet.
colour
RAL 7035
Scope of Supply
The installed unit includes non-woven fiber filter pads
Fan
Axial, shielded pole motor
Air flow rate during free air supply (with non-woven fiber filter pad)
At 50 Hz: 100 m ³/h
At 60 Hz: 115 m ³/h
Air flow rate during free air supply (with folding filter pad)
At 50 Hz: 110 m ³/h
At 60 Hz: 125 m ³/h
Air flow rate (output filter with non-woven fiber filter pad) (quantity x order number)
1 x 3239200: 74/87 m³/h
2 x 3239200: 84/98 m³/h
Rated working voltage
230 V, 1~, 50 Hz/60 Hz
Rated power Pel
At 50 Hz: 16.5 W
At 60 Hz: 14 W
Maximum rated current
At 50 Hz: 0.12 A
At 60 Hz: 0.09 A
size
Width: 204 mm
Height: 204 mm
Installation depth
90 mm
Installation opening section
Opening width: 177 mm
Opening height: 177 mm
Protection level IP, in accordance with IEC 60 529 standard
IP54， With non-woven fiber filter pad/foldable filter pad
IP55， With foldable filter pad and absorption attachment pad
IP56， Equipped with non-woven fiber filter pads/foldable filter pads and anti water spray covers
Protection level NEMA
UL Type 12， With non-woven fiber filter pad/foldable filter pad
UL Type 3、3R、4、4X， Equipped with non-woven fiber filter pads/foldable filter pads and anti water spray covers
Front fuse
Automatic fuse/fuse: 2 A
explain
If you need to increase ventilation, you can choose to install a foldable filter pad (see characteristic curve). It can be used in conjunction with filter fans, top mounted fans, and output filters.
For the 3237.XXX filter fan, connect the electronic interface through two single core wires (approximately 300 mm in length) on the device, while other filter fans use spring terminals
Fan service life (L10, 40 ° C)
At 50 Hz: 68200 h
At 60 Hz: 68200 h
Working temperature range
-15 °C... 55 °C
Storage temperature range
-30 °C... 70 °C
Noise level
At 50 Hz: 46 dB (A)
At 60 Hz: 49 dB (A)
Weight/Packaging
1.04 kg
Packaging unit
1 piece
Tax rate number
eighty-four million one hundred and forty-five thousand nine hundred and fifteen
EAN
four trillion and twenty-eight billion one hundred and seventy-seven million six hundred and fifty-one thousand eight hundred and fourteen
ETIM 8
EC000320
ETIM 7.0
EC000320
ECLASS 8.0
twenty-seven million one hundred and eighty thousand seven hundred and sixteen
Product Description
SK TopThermal filter fan, 100/115 m ³/h, 230 V, 1~, 50/60 Hz, width x height x depth: 204 x 204 x 24 mm
