Key messages
Product range

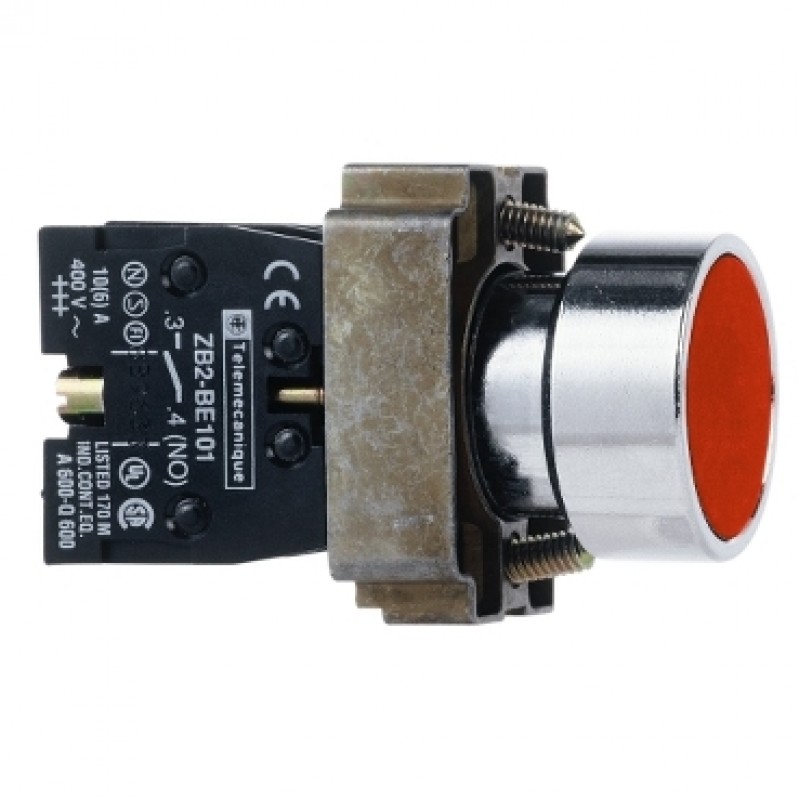

Easy Harmony XB2
Product type
button
Introduction to the device
Products (non-parts)
Short name of the product
XB2
Border material
Nickel-plated metal
Mounting diameter
22.5 mm
Each item is sold separately
1
Manipulator type
standard
Supplemental information
Retaining ring material
Zamak
ISO n°1 terminals
(11-12) NC
Types of overvoltages
Class I complies with IEC 60536
Operating position
Any location
Operator head or lens color
red
Scope of application
ZB2.. C
Equipment installation
Fixing hole - diameter: 22.5 mm
Mounting hole spacing
> = 30 x 40 mm (1...6 mm thick panels) Zamak zinc-based die-cast alloy - Thickness: 1... 6 mm
Fixed mode
Fixing screw head Recommended torque: 0.8 N.m
Fixing Screw Head Recommended torque: 1.0 N.m
logotype
Unmarked
Signal unit head shape
rotundity
The type of operating head
Spring return
Joystick shape
Red flat head, unmarked
Contact type
1NC
Contact action
Slow break
Contact wire use
Standard contacts
Force on
not
Operational Communication
2.88 mm (NO to change electrical state)
5.0 mm (total stroke)
Mechanical life
3000000 times
Wiring capacity
Screw press-fit terminals, < = 2 x 1.5 mm² with and without cable ends
Screw press-in terminals, < = 1 x 2.5 mm² with and without cable ends
Screw-in terminals, > = 1 x 0.5 mm² with and without cable ends
Quick terminal block, connection type: 6.3 mm
Tightening torque
0.8… 1.0 N.m
Screw head shape
Crossover compatible with Philips no 1 screwdrivers
Crossover compatible with pozidriv No 1 screwdrivers
Slotted slot compatible with flat Ø 4 mm screwdrivers
Slotted slot compatible with flat Ø 5.5 mm screwdrivers
Contact material
Silver alloy (silver/nickel)
Short-circuit protection
10 A gL fuse type gG according to IEC 60947-5-1
Conventional heating current [Ith]
10 A according to IEC 60947-5-1
Rated insulation voltage [UI]
600 V (pollution class 3) according to IEC 60947-1
Rated impulse withstand voltage [UIMP]
6 kV according to IEC 60947-1
Rated operating current [IE]
3 A in... Up to 240 V, AC-15, A600 according to IEC 60947-5-4
0.27 A in... up to 250 V, DC-13,
