Key messages

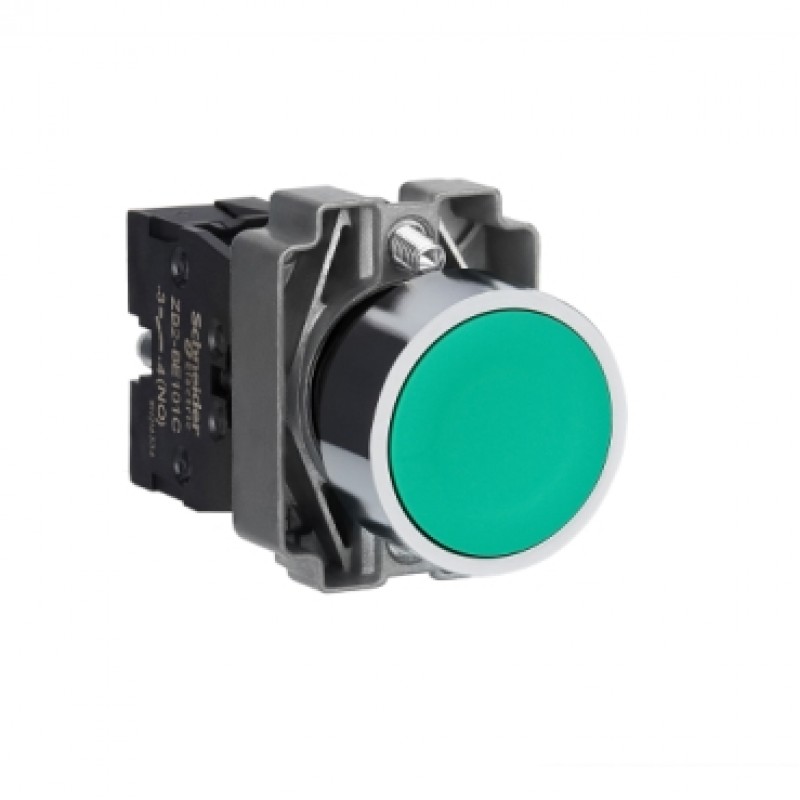

The product range is Easy Harmony XB2
Product Type button
Equipment IntroductionProduct (Non-Parts)
The product is nicknamed XB2
Frame material: nickel-plated metal
Mounting diameter 22.5 mm
Each item is sold separately in quantity1
Controlling head type standard
Supplemental information
Retaining ring material Zamak
ISO n°1 terminal (13-14) NO
Class I overvoltage according to IEC 60536
Position of operation: Any position
The operating head or lens color is green
Scope of applicationZB2.. C
Equipment mounting holes - Diameter: 22.5 mm
Mounting hole spacing > = 30 x 40 mm (1...6 mm thick panels) Zamak zinc-based die-cast alloy - Thickness: 1... 6 mm
Fixed mode set screw head recommended torque: 0.8 N.m
Fixing Screw Head Recommended torque: 1.0 N.m
The identity is not marked
The head of the signal unit is rounded
Operating head type spring return
Joystick profile green flat head, unmarked
Contact Type 1 NO
The contact action is slow to break
Standard contacts are used for contact wires
Force to open none
Operational propagation 2.88 mm (NO changes electrical state)
5.0 mm (total stroke)
Mechanical life 3000000 times
