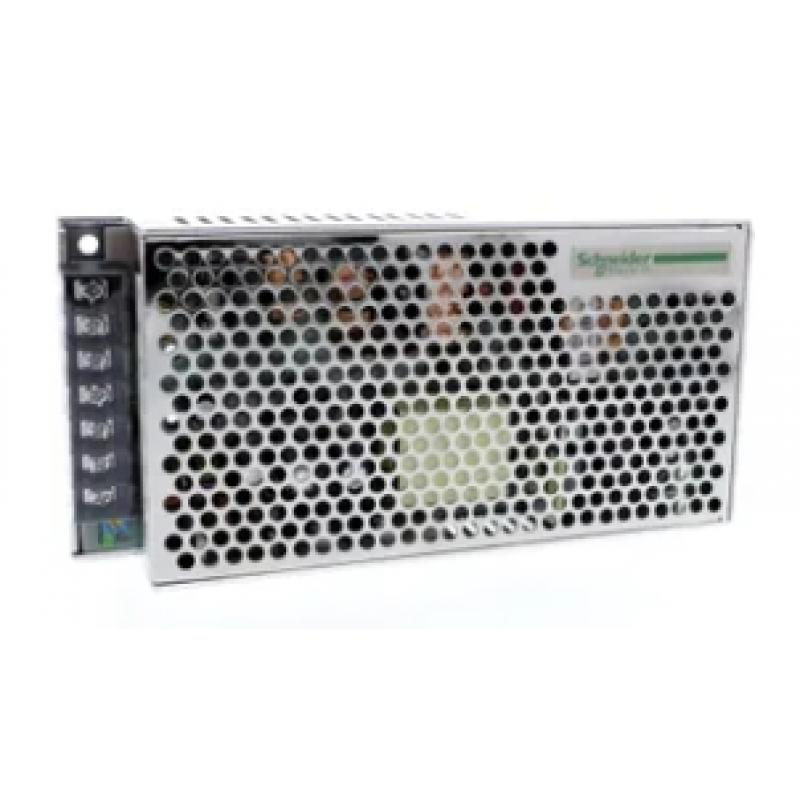

Power supply,ABL1REM24062

Power supply,ABL1REM24062
Power supply,ABL1REM24062
  • MODEL: ABL1REM24062
  • Weight: 0.80kg
  • LEAD TIME: in stock
$115.30

Product data sheet

Main
Range of ProductPhaseo Dedicated
Product or Component TypePower supply
Power supply typeRegulated switch mode
Kw Rating150 W
Main Input Voltage100...120 V AC single phase
200...240 V AC single phase
180...370 V DC
Output voltage24 V DC
Power supply output current6.2 A
Operating positionAny position
Vibration resistance2 gn 9…150 Hz)EN/IEC 61131-2
3.5 mm 5…9 Hz)EN/IEC 61131-2
Name of testConducted interference EN 61000-4-8 level 4
Electrostatic discharges EN/IEC 61000-4-2 level 3
Induced electromagnetic field EN/IEC 61000-4-6 level 3
Radiated electromagnetic field EN/IEC 61000-4-3 level 3
Rapid transient IEC 61000-4-4 level 3
Conducted/radiated emissions EN 55022 Class B
Conducted/radiated emissions EN/IEC 55011
Emission EN/IEC 61000-6-3
Primary outage IEC 61000-4-11
Surge EN/IEC 61000-4-5

Complementary
Input voltage limits170...264 V
85...132 V
Network Frequency47...63 Hz
Inrush current50 A 115 V AC
100 A 230 V AC
Cos phi0.65
Efficiency80 %
Power dissipation in W37.5 W
Current consumption5 A 100 V
2.5 A 240 V
Input protection typeIntegrated fuse (not interchangeable)
Output voltage limits21.6...26.4 V
Line and load regulation+/- 3 %
Holding time>= 10 ms 100 V
>= 40 ms 240 V
Output protection typeAgainst overload 1.1...1.5 x In
Against overvoltage tripping if U > 1.25 x Un
Against short-circuits automatic reset
Thermal
Connections - terminalsGround connection screw type terminals 1 x 4 mm² AWG 12
Input connection screw type terminals 2 x 4 mm² AWG 12
Output connection screw type terminals 4 x 4 mm² AWG 12
MarkingCE
Mounting SupportReversible mounting bracket
Panel
Operating altitude6561.68 ft (2000 m)
Output couplingSeries
Parallel
Overvoltage categoryII
Meantime between failure [MTBF]100000 h 104 °F (40 °C)
Status LED1 LED (Green) output voltage
Net Weight1.61 lb(US) (0.73 kg)

Environment
Product CertificationsTUV 60950-1
KC
RCM
cCSAus
CSA 22-2 No 60950-1
EAC
UL 508
Environmental characteristicEMC EN 50081-1
EMC EN 50082-2
EMC EN 61000-6-3
EMC EN/IEC 61000-6-2
Safety EN/IEC 60950-1
Safety SELV
IP degree of protectionIP20 conforming to EN/IEC 60950
Ambient air temperature for operation32…113 °F (0…45 °C) without derating)
113…140 °F (45…60 °C) with derating factor)
Ambient Air Temperature for Storage-13…185 °F (-25…85 °C)
Relative humidity20…90 %
Overvoltage categoryClass I VDE 0106-1
Pollution degree2
Dielectric strength1500 V between input and ground
3000 V between input and output
500 V between output and ground
