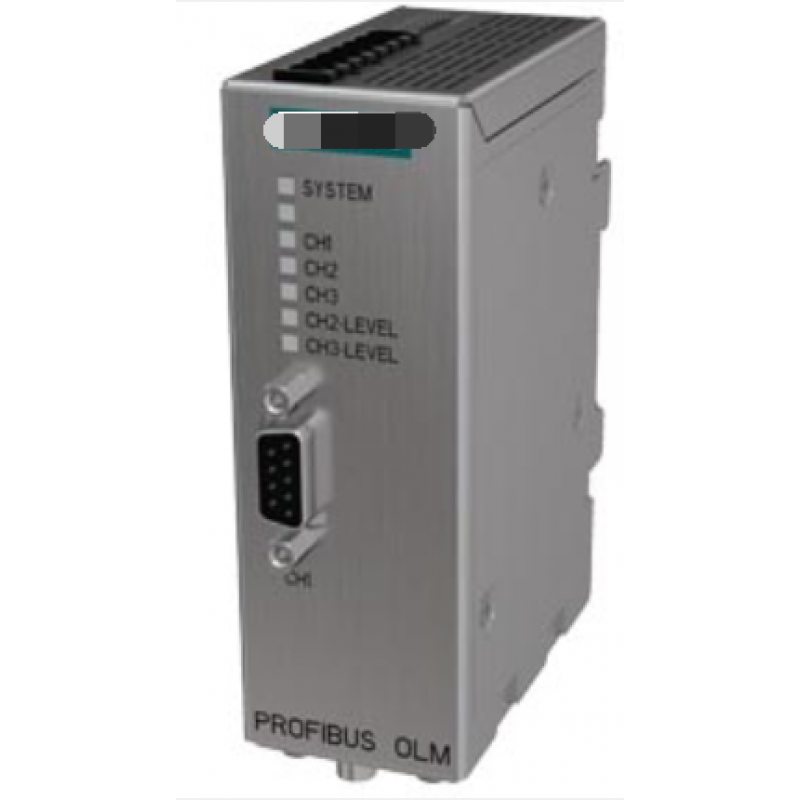

OLM optical link module 6GK1503-3CC00

OLM optical link module 6GK1503-3CC00
OLM optical link module 6GK1503-3CC00
  • MODEL: 6GK1503-3CC00
  • LEAD TIME: IN STOCK
$2,542.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Product data sheet

Product
Article Number (Market Facing Number) 6GK1503-3CC00
Product Description PROFIBUS OLM/G12-1300 V4.0 optical link module with 1 RS 485 and 2 glass fiber optic cable interfaces (4 BFOC sockets), 1300 Nm shaft length for large distances with signaling contact and test port.
Product family OLM optical link module
Product Lifecycle (PLM) PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group 5O1 / 5O1
List Price Show prices
Customer Price Show prices
Surcharge for Raw Materials None
Metal Factor None
Delivery information
Export Control Regulations AL : N / ECCN : 9N9999
Estimated dispatch time (Working Days) 40 Day/Days
Net Weight (kg) 0,427 Kg
Packaging Dimension 39,50 x 74,50 x 112,00
Package size unit of measure MM
Quantity Unit 1 Piece
Packaging Quantity 1
Additional Product Information
EAN 4019169852555
UPC 662643424508
Commodity Code 85176200
LKZ_FDB/ CatalogID IK
Product Group 2449
Group Code R320
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Given
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates
Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)
SCIP number dbe598a7-3251-406f-b47b-b89f66090c73
Classifications


Version Classification
eClass 12 19-17-01-32
eClass 14 19-17-01-32
eClass 6 19-17-01-90
eClass 7.1 19-17-01-14
eClass 8 19-17-01-14
eClass 9 19-17-01-14
eClass 9.1 19-17-01-14
ETIM 7 EC001467
ETIM 8 EC001467
ETIM 9 EC001467
UNSPSC 15 43-20-15-44

Tags: ZORX-YMX20240722-03
