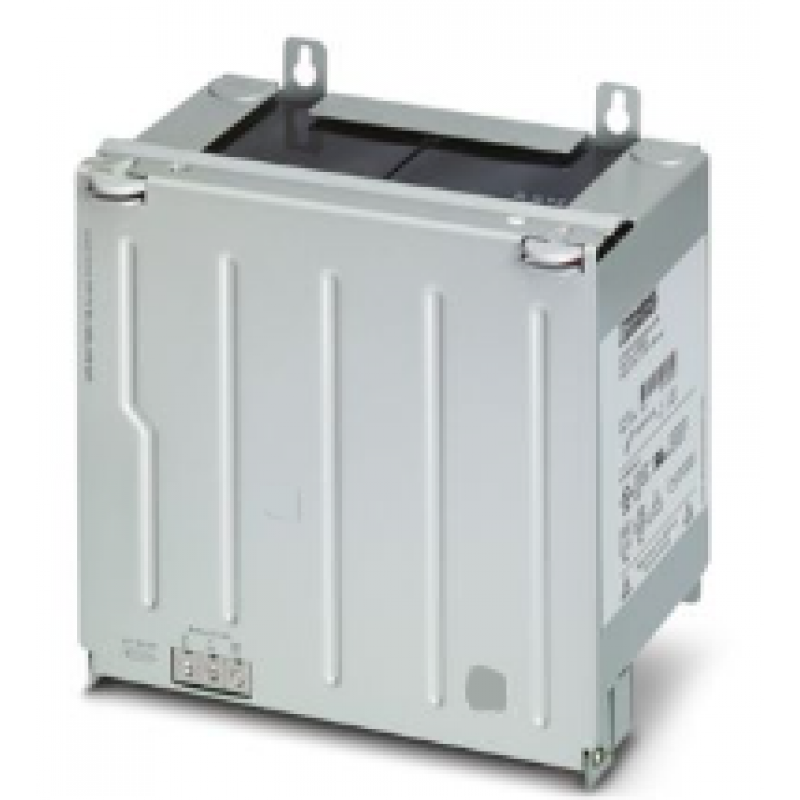

MODULE 1274119

Input

Input voltage 24 V DC (SELV)

Rated capacity 12 Ah

Charging current 3.6 A

End of charge 27.6 V DC (20 °C)

Output

Output voltage 24 V DC

Output current max. 50 A

Output fuse 2x 25 A

Buffer time 21 min.

8 min. (40 A)

Overview

Parallel Yes

max. 5

Serial connection no

Battery type BB Battery

BP 12-12FR

Battery technology VRLA-AGM

IQ-Technology yes

Memory Module Life (Eurobat compliant) 6 (20 °C)

Specification Block

Battery pack Yes

Suitable for fast charging Yes

Temperature sensor yes

Product Size

Width 202 mm

Height 202 mm

Depth 110 mm

Drilled holes

Diameter 5 mm

Mounting dimensions

Mounting distance left/right 0 mm / 0 mm

Mounting distance top/bottom 5 mm / 5 mm
