Dimensions
Product Net Width:
0.03 m
Product Net Height:
0.03 m
Product Net Depth / Length:
0.052 m
Product Net Weight:
0.018 kg
Technical
Ambient Air Temperature:
Operation -25 ... +70 °C
Storage -40 ... +85 °C
Color:
Red

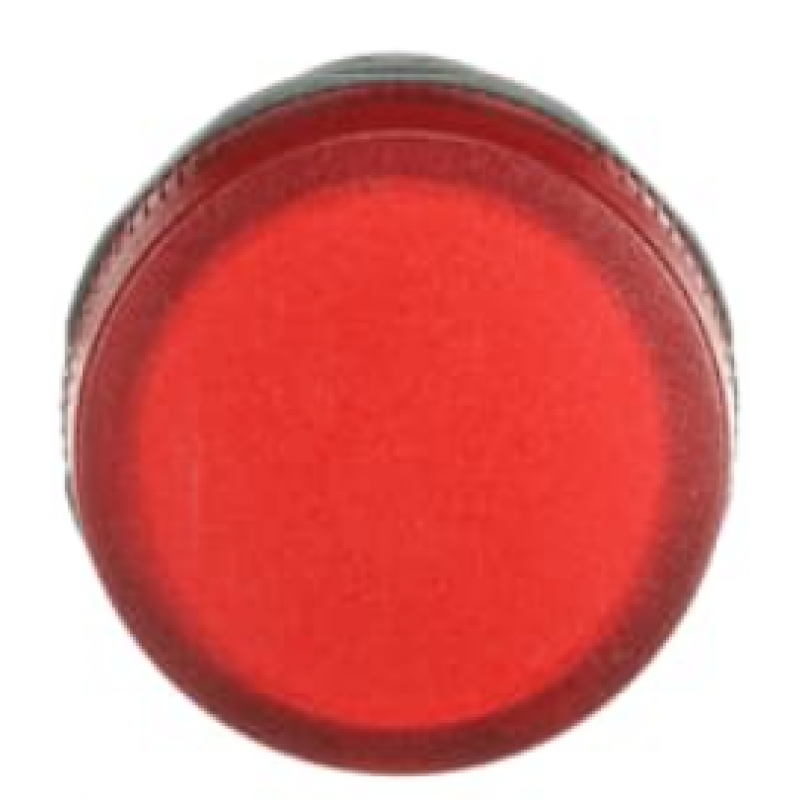

Actuator Type:
Pilot light head
Illumination:
Illuminated
Lamp Type:
110-13 V AC, integrated LED
Enclosure Type NEMA:
Type1
Type12
Type13
Type3R
Type4
Type4X
Pollution Degree:
3
Rated Frequency (f):
Supply Circuit 50 / 60 Hz
Rated Operational Voltage:
110 ... 130 V AC
Supply Circuit 110 ... 130 V AC
Connecting Capacity:
Flexible with Ferrule 1 x 0.75...2.5 mm²
Flexible with Ferrule 2 x 0.75...2.5 mm²
Flexible with Insulated Ferrule 1 x 0.75...2.5 mm²
Flexible with Insulated Ferrule 2 x 0.75...2.5 mm²
Flexible 1 x 0.75 ... 2.5 mm²
Flexible 2 x 0.75 ... 2.5 mm²
Solid 1 x 0.75...2.5 mm²
Solid 2 x 0.75...2.5 mm²
Connection Type:
Screw Clamp
Terminal Type:
Screw Terminals
Tightening Torque:
0.9 N·m
Wire Stripping Length:
8 mm
