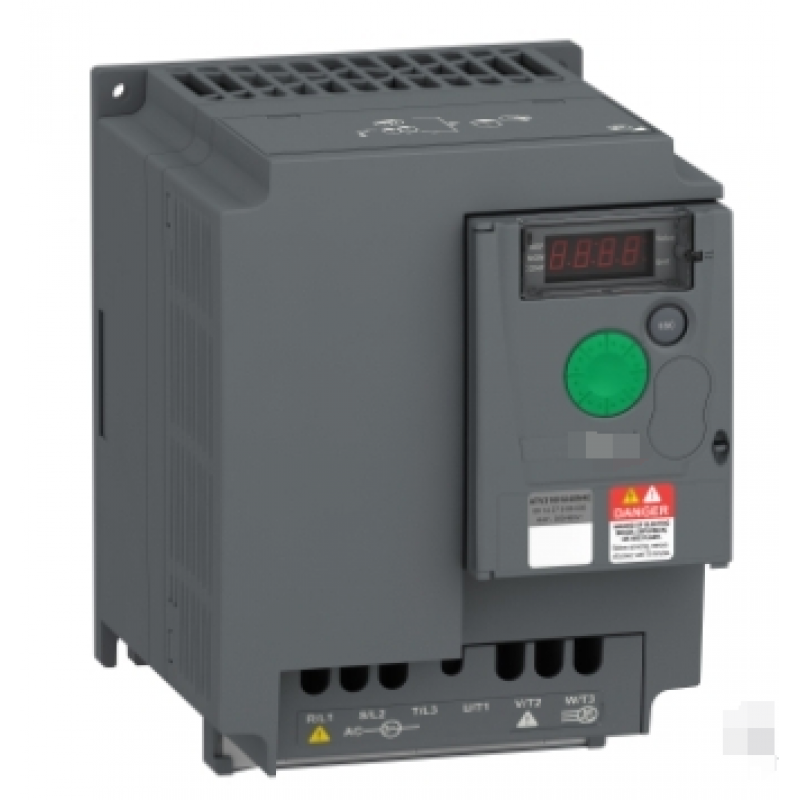

| Quantity per set | Set of 1 |
|---|
| EMC filter | Without EMC filter |
|---|
| Type of cooling | Integrated fan |
|---|
| Communication port protocol | Modbus |
|---|
| Connector type | RJ45 (on front face) for Modbus |
|---|
| Physical interface | 2-wire RS 485 for Modbus |
|---|
| Transmission frame | RTU for Modbus |
|---|
| Transmission rate | 4800 bit/s
9600 bit/s
19200 bit/s
38400 bit/s |
|---|
| Number of addresses | 1…247 for Modbus |
|---|
| Communication service | Read holding registers (03) 29 words
Write single register (06) 29 words
Write multiple registers (16) 27 words
Read/write multiple registers (23) 4/4 words
Read device identification (43) |
|---|
| Line current | 13.7 A at 380 V (heavy duty)
18.0 A at 380 V (normal duty)
11.4 A at 460 V (heavy duty)
14.9 A at 460 V (normal duty) |
|---|
| Apparent power | 9.1 kVA at 460 V (heavy duty)
15.1 kVA at 460 V (normal duty) |
|---|
| Prospective line Isc | 5 kA ( heavy duty )
5 kA ( normal duty ) |
|---|
| Continuous output current | 9.5 A heavy duty
12.1 A normal duty |
|---|
| Maximum transient current | 14.3 A during 60 s (heavy duty)
13.3 A during 60 s (normal duty) |
|---|
| Power dissipation in W | 115.1 W, at In (heavy duty)
158.3 W, at In (normal duty) |
|---|
| Speed drive output frequency | 0.5…400 Hz |
|---|
| Nominal switching frequency | 4 kHz |
|---|
| Switching frequency | 2...12 kHz adjustable |
|---|
| Speed range | 1…20 for asynchronous motor |
|---|
| Transient overtorque | 170…200 % of nominal motor torque depending on drive rating and type of motor |
|---|
| Braking torque | Up to 150 % of nominal motor torque with braking resistor
Up to 70 % of nominal motor torque without braking resistor |
|---|
| Asynchronous motor control profile | Voltage/frequency ratio (V/f)
Voltage/frequency ratio - Energy Saving, quadratic U/f
Sensorless vector control (SVC) |
|---|
| Motor slip compensation | Adjustable |
|---|
| Output voltage | 380...460 V three phase |
|---|
| Electrical connection | Terminal, clamping capacity: 2.5...4 mm², AWG 14...AWG 12 (L1, L2, L3, PA/+, PB, U, V, W) |
|---|
| Tightening torque | 1.2…1.4 N.m |
|---|
| Insulation | Electrical between power and control |
|---|
| Supply | Internal supply for reference potentiometer: 5 V (4.75…5.25 V)DC, <10 mA with overload and short-circuit protection
Internal supply for logic inputs: 24 V (20.4…28.8 V)DC, <100 mA with overload and short-circuit protection |
|---|
| Analogue input number | 1 |
|---|
| Analogue input type | Configurable current AI1 0...20 mA 250 Ohm
Configurable voltage AI1 0...10 V 30 kOhm
Configurable voltage AI1 0...5 V 30 kOhm |
|---|
| Discrete input number | 4 |
|---|
| Discrete input type | Programmable LI1...LI4 24 V 18...30 V |
|---|
| Discrete input logic | Negative logic (sink), > 16 V (state 0), < 10 V (state 1), input impedance 3.5 kOhm
Positive logic (source), 0...< 5 V (state 0), > 11 V (state 1) |
|---|
| Sampling duration | 10 ms for analogue input
20 ms, tolerance +/- 1 ms for logic input |
|---|
| Linearity error | +/- 0.3 % of maximum value for analogue input |
|---|
| Analogue output number | 1 |
|---|
| Analogue output type | AO1 software-configurable voltage: 0...10 V AC 0...10 V 0…0.02 A, impedance: 470 Ohm, resolution 8 bits
AO1 software-configurable current: 0...20 mA, impedance: 800 Ohm, resolution 8 bits |
|---|
| Discrete output number | 2 |
|---|
| Discrete output type | Logic output LO+, LO-
Protected relay output R1A, R1B, R1C 1 C/O |
|---|
| Minimum switching current | 5 mA at 24 V DC for logic relay |
|---|
| Maximum switching current | 2 A at 250 V AC on inductive load cos phi = 0.4 L/R = 7 ms for logic relay
2 A at 30 V DC on inductive load cos phi = 0.4 L/R = 7 ms for logic relay
3 A at 250 V AC on resistive load cos phi = 1 L/R = 0 ms for logic relay
4 A at 30 V DC on resistive load cos phi = 1 L/R = 0 ms for logic relay |
|---|
| Acceleration and deceleration ramps | Linear from 0...999.9 s
S
U |
|---|
| Braking to standstill | By DC injection, <30 s |
|---|
| Protection type | Line supply overvoltage
Line supply undervoltage
Overcurrent between output phases and earth
Overheating protection
Short-circuit between motor phases
Against input phase loss in three-phase
Thermal motor protection via the drive by continuous calculation of I²t |
|---|
| Frequency resolution | Analog input: converter A/D, 10 bits
Display unit: 0.1 Hz |
|---|
| Time constant | 20 ms +/- 1 ms for reference change |
|---|
| Operating position | Vertical +/- 10 degree |
|---|
| Height | 184 mm |
|---|
| Width | 140 mm |
|---|
| Depth | 151 mm |
|---|
| net weight | 1.8 kg |
|---|
| Supply frequency | 50/60 Hz +/- 5 % |
|---|
