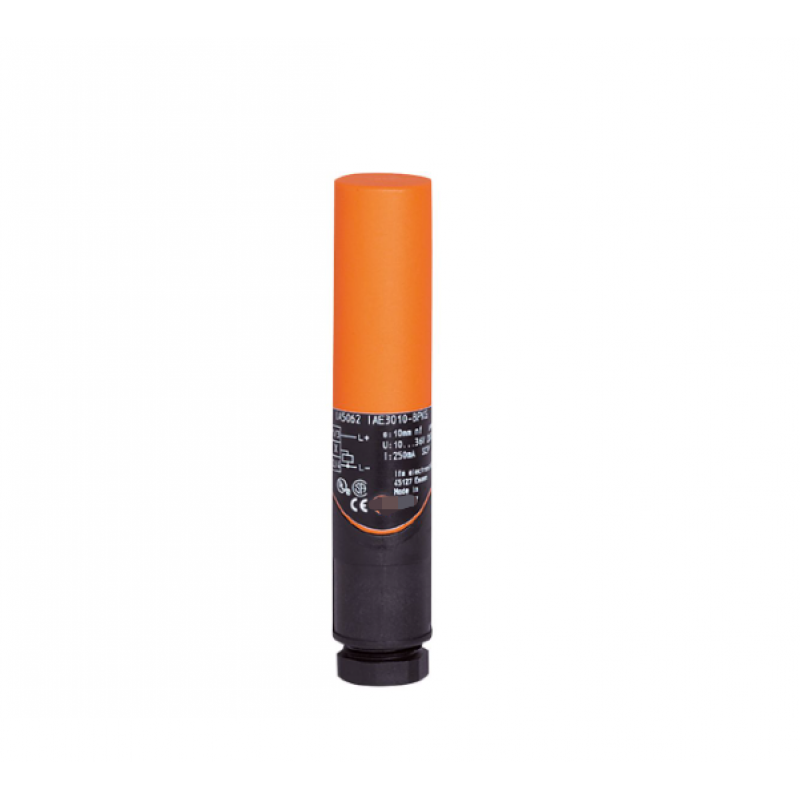

Product characteristics
| Output function | normally open / closed; (selectable) |
|---|
| Sensing range [mm] | 10 |
|---|
| Housing | tubular |
|---|
| Dimensions [mm] | Ø 20 / L = 92 |
|---|
Electrical data
| Operating voltage [V] | 20...250 AC/DC |
|---|
| Protection class | II |
|---|
| Reverse polarity protection | no |
|---|
Outputs
| Output function | normally open / closed; (selectable) |
|---|
| Max. voltage drop switching output DC [V] | 6 |
|---|
| Max. voltage drop switching output AC [V] | 6.5 |
|---|
| Minimum load current [mA] | 5 |
|---|
| Max. leakage current [mA] | 2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC) |
|---|
| Permanent current rating of switching output AC [mA] | 250; (350 (...50 °C)) |
|---|
| Permanent current rating of switching output DC [mA] | 100 |
|---|
| Short-time current rating of switching output [mA] | 2200; (20 ms / 0,5 Hz) |
|---|
| Switching frequency AC [Hz] | 25 |
|---|
| Switching frequency DC [Hz] | 70 |
|---|
| Short-circuit proof | no |
|---|
| Overload protection | no |
|---|
Monitoring range
| Sensing range [mm] | 10 |
|---|
| Real sensing range Sr [mm] | 10 ± 10 % |
|---|
| Operating distance [mm] | 0...8.1 |
|---|
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2 |
|---|
| Hysteresis [% of Sr] | 1...15 |
|---|
| Switch-point drift [% of Sr] | -10...10 |
|---|
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|
| Protection | IP 65 |
|---|
Tests / approvals
| EMC | | EN 60947-5-2 | | | EN 55011 | class B |
|
|---|
| MTTF [years] | 606 |
|---|
| UL approval | | Ta | 0...40 °C | | Enclosure type | Type 1 | | voltage supply | Hazardous voltage | | File number UL | E174191 |
|
|---|
Mechanical data
| Weight [g] | 83.5 |
|---|
| Housing | tubular |
|---|
| Mounting | non-flush mountable |
|---|
| Dimensions [mm] | Ø 20 / L = 92 |
|---|
| Material | PBT; LED window: PC |
|---|
Displays / operating elements
| Display | | Switching status | 1 x LED, yellow |
|
|---|
Electrical connection
| Required protection | miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting |
|---|
Remarks
| Remarks | | Recommendation: check the unit for reliable function after a short circuit. |
|
|---|
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | terminals: ...2.5 mm²; Cable sheath: Ø 4.5...10 mm; Cable gland: M16 X 1.5 |
|---|
