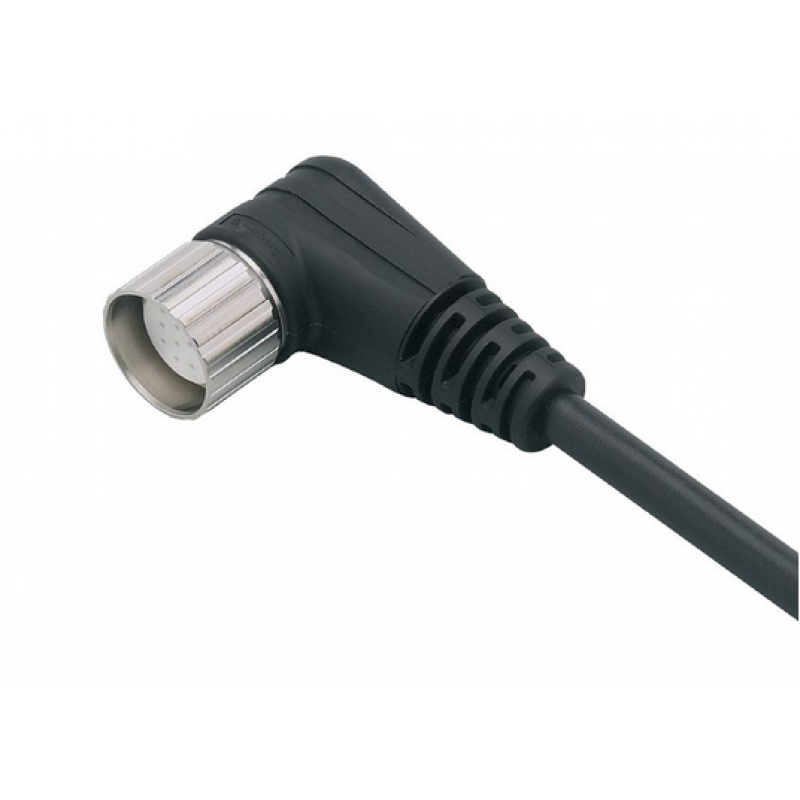

Female cordset E11739

Female cordset E11739
Female cordset E11739
  • MODEL: E11739
  • LEAD TIME: 4-8 WEEKS
$117.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Product data sheet

Application
System Halogen-free
Electrical data
Operating voltage [V] < 63 AC/DC
Operating conditions
Ambient temperature [°C] -25...80
Protection IP 67
Mechanical data
Weight [g] 748.5
Dimensions [mm] 51 x 26 x 70
Material PUR black
Molded-body material PUR
Material nut brass, nickel-plated
Tightening torque [Nm] 2
Remarks
Pack quantity 1 pcs.
Electrical connection

 Cable: 5 m, PUR, Halogen-free, black, Ø 9.3 mm; 8 x 0.5 mm² (63 x Ø 0.1 mm ) + 3 x 1.0 mm² (127 x Ø 0.1 mm )
Electrical connection - Socket
Connection Connector: 1 x M23, angled; Moulded body: PUR; Locking: brass, nickel-plated
